(35.724.16) - VALVE SECTION - 4 IN 1 , LOADER (PILOT CONTROLS) (580SN, 580SN WT, 590SN)

Запчасти Case 590SN (35.724.16) - VALVE SECTION - 4 IN 1 , LOADER (PILOT CONTROLS) (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS

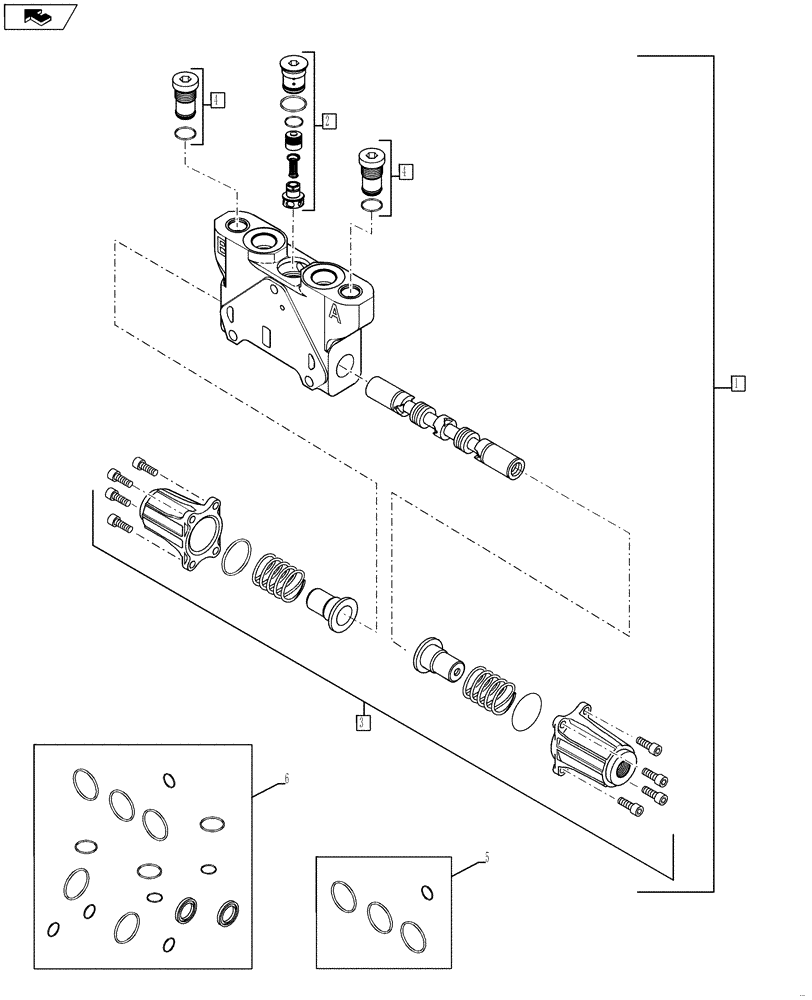

Схема запчастей Case 590SN - (35.724.16) - VALVE SECTION - 4 IN 1 , LOADER (PILOT CONTROLS) (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS
5
4
6
2
home
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84295102

HYD VALVE SECTION

1шт.

2

84157590

COMPENSATOR

1шт.

3

87346914

KIT

1шт.

4

84232746

PLUG

2шт.

5

85825473

SEAL KIT

1шт.

6

87617657

O-RING KIT

1шт.
