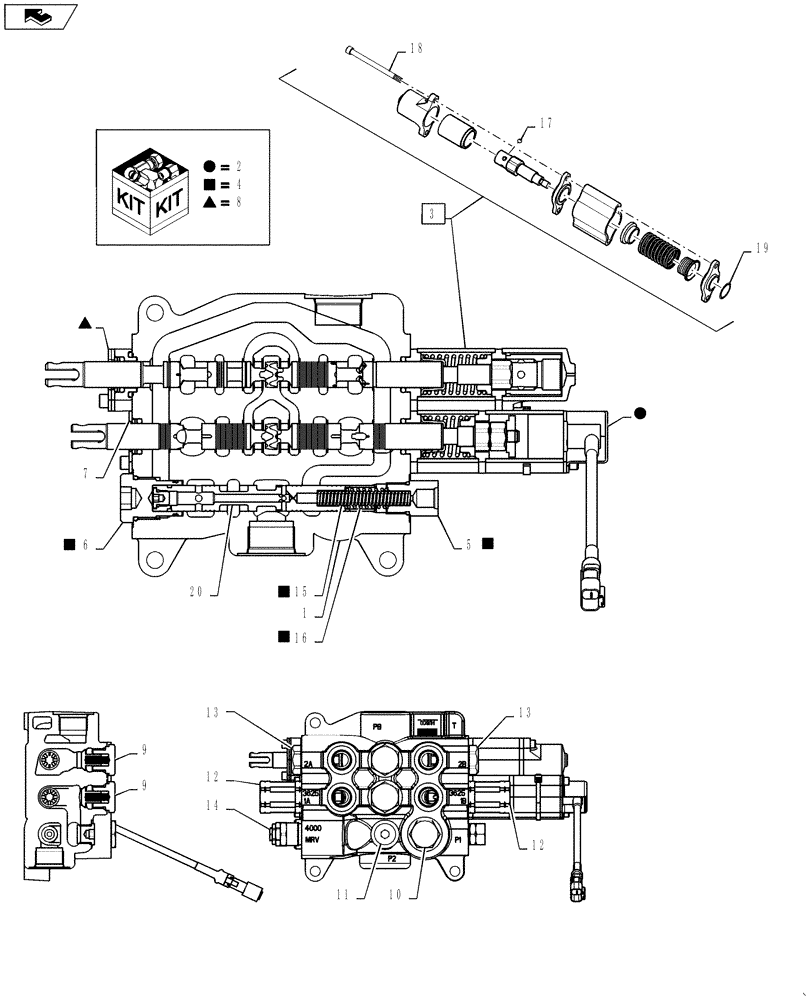

Запчасти Case 590SN (35.724.09[05]) - VALVE - LOADER CONTROL, TWO SPOOL (MANUAL CONTROLS) (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS

84217762

HYDRAULIC VALVE

Incl Ref 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

BODY; Order Complete Valve 84217762

1шт.

2

84296814

KIT

1шт.

3

87426227

DETENT

Endcap With Detent; Incl Ref 17 - 19

1шт.

4

84296863

KIT

Incl Ref 5, 6, 15, 16

1шт.

5

NSS

NOT SOLD SEPARAT

PLUG ASSY; Order Ref 4

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG ASSY; Order Ref 4

1шт.

7

84315193

SEAL

Plate Assy.

1шт.

8

84327674

KIT

Seal Plate Assy.

1шт.

9

87426238

VALVE, CHECK

2шт.

9

87455975

O-RING

1шт.

10

163410

PLUG,1-1/16" - 12 ORB

1шт.

10

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG; Order Complete Valve 84217762

1шт.

12

84296801

VALVE PRESSURE RELIE,1-1/4" - 12

Loader Dump

2шт.

13

81868381

CHECK VALVE,1-1/16" - 12

Anti-Void

2шт.

13

87455580

O-RING KIT

Anti-Void Valve

2шт.

14

84296864

VALVE PRESSURE RELIE,7/8" - 14

4000 PSI

1шт.

15

NSS

NOT SOLD SEPARAT

SPRING; Order Ref 4

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING; Order Ref 4

1шт.

17

87310276

BALL BEARING

4шт.

18

87310275

SCREW

2шт.

19

87454547

O-RING

1шт.

20

NSS

NOT SOLD SEPARAT

SPOOL; Order Complete Valve 84217762

1шт.

21

84296788

SEAL KIT

Seal; Not Illustrated; See Figure 35.724.09 (03)

1шт.
