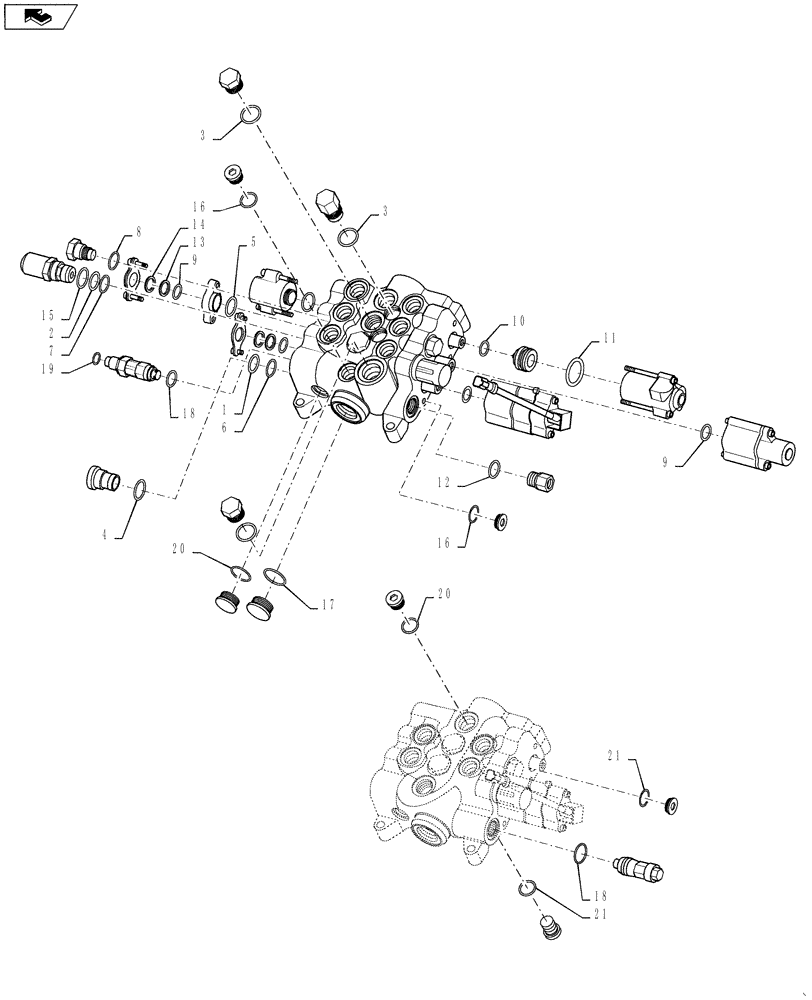

Запчасти Case 590SN (35.724.09[03]) - SEAL KIT - LOADER CONTROL VALVE (35) - HYDRAULIC SYSTEMS

84296788

SEAL KIT

Loader Control Valve Seal Kit; Incl. Ref 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

BACK-UP RING

1шт.

2

87302608

BACK-UP RING

BACK-UP RING

2шт.

3

87455975

O-RING

4шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

5

87455538

O-RING,0.125" Thk x 1" ID, -214, 70 Duro

1шт.

6

87327076

O-RING

O-RING

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

2шт.

8

NSS

NOT SOLD SEPARAT

O-RING

2шт.

9

87454547

O-RING

4шт.

10

NSS

NOT SOLD SEPARAT

O-RING

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING

1шт.

12

87455974

O-RING,0.097" Thk x 0.755" ID

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER

2шт.

14

NSS

NOT SOLD SEPARAT

WIPER

2шт.

15

NSS

NOT SOLD SEPARAT

O-RING

2шт.

16

NSS

NOT SOLD SEPARAT

O-RING

2шт.

17

NSS

NOT SOLD SEPARAT

O-RING

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING

1шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
