Запчасти Case 590SN (35.724.05) - HANDLE, LOADER CONTROL - POWER SHIFT TRANSMISSION (35) - HYDRAULIC SYSTEMS

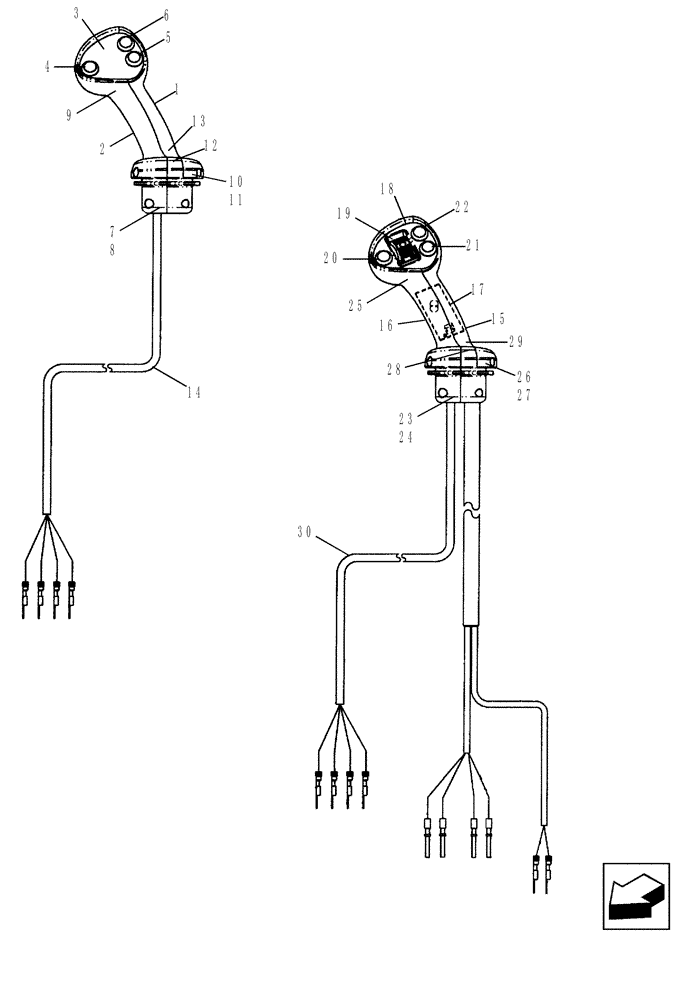

Схема запчастей Case 590SN - (35.724.05) - HANDLE, LOADER CONTROL - POWER SHIFT TRANSMISSION (35) - HYDRAULIC SYSTEMS
2
5
20
10
4
7
18
26
8
11
27
25
30
16
29
3
23
14
21
1
13
12
28
17
22
19
6
9
15
24

Артикул

Название

Примечание

Количество

87638045

JOYSTICK

Loader Control Lever,Three Button, DeClutch, Differential Lock, And Kick-Down Switches; 2 Spool With Power Shift Transmission; Incl. 1 - 14

1шт.

1

87623338

HANDLE GRIP

GRIP Handle, Loader Control, RH Half

1шт.

2

87623339

HANDLE GRIP

GRIP Handle, Loader Control, LH Half

1шт.

3

NSS

NOT SOLD SEPARAT

BEZEL Switch Mounting

1шт.

4

87658706

PUSH BUTTON

SWITCH Push Button, De-Clutch Differential Lock

1шт.

5

87658705

PUSH BUTTON

SWITCH Push Button, Differential Lock

1шт.

6

87658707

PUSH BUTTON SWITCH

SWITCH Push Button, Kick-Down

1шт.

7

825-1404

NUT,M4, Cl 8

4шт.

8

86639294

HEX SOC SCREW,M4 x 0.7 x 20mm, Cl 8.8

4шт.

9

260-16312

SELF-TAP SCREW,Pan HD, M6 x 20mm

2шт.

10

87019103

SET SCREW,M6 x 10mm

2шт.

11

87638350

NUT

2шт.

12

87689189

CABLE TIE,110mm L

1шт.

13

87689338

SCREW,#4 - 24 x 3/8"

1шт.

14

NSS

NOT SOLD SEPARAT

HARNESS Differential Lock, De-Clutch, Kick -Down

1шт.

87638044

JOYSTICK

Loader Control Lever, Three Button, DeClutch, Differential Lock, And Kick-Down Switches, Prop Roller With Detent; 3 Spool With Power Shift Transmission; Incl. 15 - 30

1шт.

15

87623338

HANDLE GRIP

GRIP Handle, Loader Control, RH Half

1шт.

16

87623339

HANDLE GRIP

GRIP Handle, Loader Control, LH Half

1шт.

17

NSS

NOT SOLD SEPARAT

BOARD Circuit With Harness; Bi-Directional PWM Driver

1шт.

18

87623342

BEZEL

BEZEL Switch Mounting

1шт.

19

87387703

PUSH BUTTON

SWITCH Prop Roller With Detent

1шт.

20

87658706

PUSH BUTTON

SWITCH Push Button, De-Clutch

1шт.

21

87658705

PUSH BUTTON

SWITCH Push Button, Differential Lock

1шт.

22

87658707

PUSH BUTTON SWITCH

SWITCH Push Button, Kick-Down

1шт.

23

825-1404

NUT,M4, Cl 8

4шт.

24

86639294

HEX SOC SCREW,M4 x 0.7 x 20mm, Cl 8.8

4шт.

25

260-16312

SELF-TAP SCREW,Pan HD, M6 x 20mm

2шт.

26

87019103

SET SCREW,M6 x 10mm

2шт.

27

87638350

NUT

2шт.

28

87689189

CABLE TIE,110mm L

1шт.

29

87689338

SCREW,#4 - 24 x 3/8"

1шт.

30

NSS

NOT SOLD SEPARAT

HARNESS Differential Lock, De-Clutch, Kick-Down

1шт.

Выбрано товаров: 32
