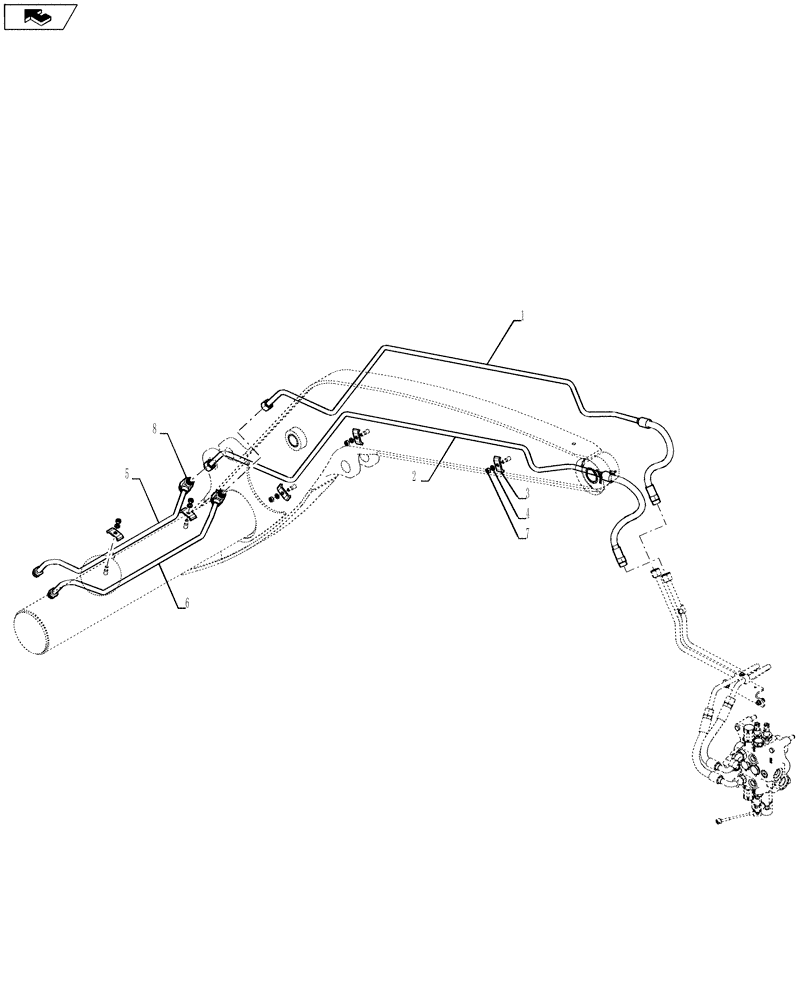

Запчасти Case 590SN (35.701.14) - HYDRAULICS - LOADER (35) - HYDRAULIC SYSTEMS

1

84297406

HYD TUBE

Port B, Replaced by 48064843 & 48087369

1шт.

1

48064843

HYD TUBE

1шт.

1

48087369

HYDRAULIC HOSE

1шт.

2

84297407

HYD TUBE

Port A, Replaced by 48051644 & 48087369

1шт.

2

48051644

HYD TUBE

1шт.

2

48087369

HYDRAULIC HOSE

1шт.

3

D138055

CLAMP

5шт.

4

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

5шт.

5

84240490

TUBE

Incl 8

1шт.

6

84240497

TUBE

Incl 8

1шт.

7

86500689

NUT,M10 x 1.5, Cl 10

5шт.

8

84254679

TEE,5/8" ORFS x 5/8" ORB

Brazed To Tube

2шт.
