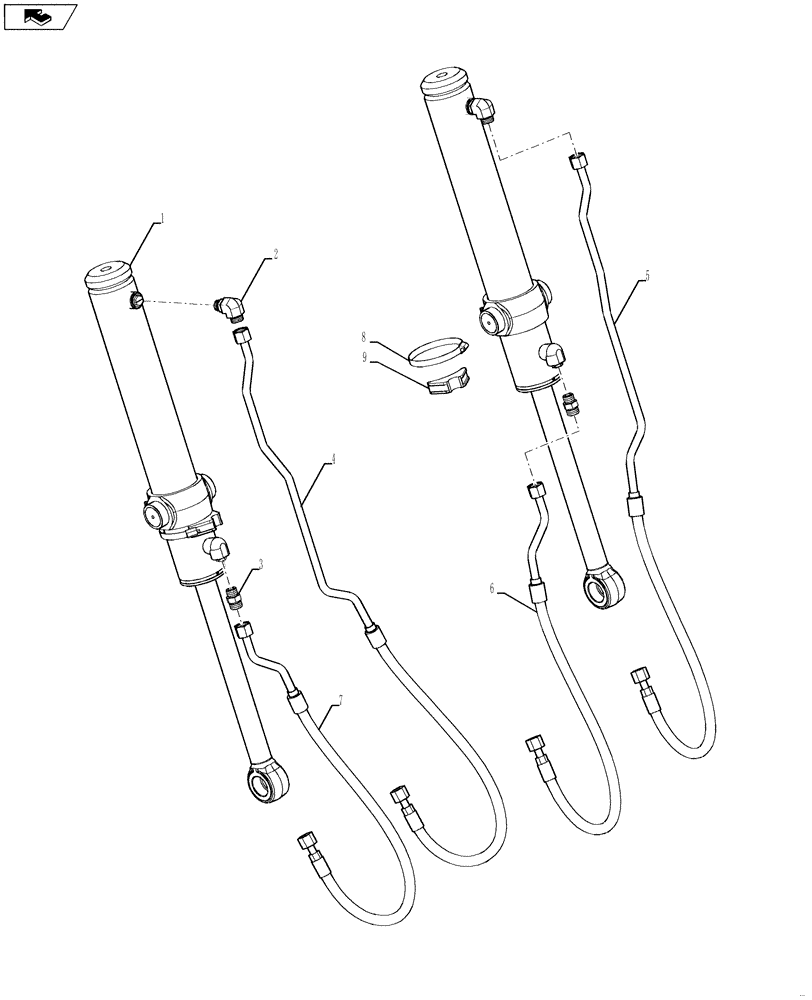

Запчасти Case 590SN (35.701.13) - HYDRAULICS - LOADER DUMP (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS

1

84210944

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 516.5mm Stroke

590SN

2шт.

1

84210943

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 516.5mm Stroke

580SN, 580SN WT

2шт.

1

84210943R

REMAN-HYD CYLINDER

580SN, 580SN WT, Both LOADER BACKHOE - TIER 3

2шт.

1

84210943C

CORE-HYD CYLINDER

Return Number

2шт.

2

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

2шт.

3

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

2шт.

4

84399689

TUBE

Right Hand Dump Port A, Replaced by 48060449 & 48060455

1шт.

4

48060449

HYD TUBE

1шт.

4

48060455

HYDRAULIC HOSE

1шт.

5

84399671

TUBE

Left Hand Dump Port A, Replaced by 48060555 & 48060455

1шт.

5

48060555

HYD TUBE

1шт.

5

48060455

HYDRAULIC HOSE

1шт.

6

84307497

HYD TUBE

Left Hand Dump Lower, Replaced by 48060843 & 48060455

1шт.

6

48060843

HYD TUBE

1шт.

6

48060455

HYDRAULIC HOSE

1шт.

7

84307492

HYD TUBE

Right Hand Dump Lower, Replaced by 48060843 & 48060455

1шт.

7

48060843

HYD TUBE

1шт.

7

48060455

HYDRAULIC HOSE

1шт.

8

9706924

HOSE CLAMP,103.1mm - 127mm

2шт.

9

L79937

SADDLE

2шт.

10

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

For Callout 4 - 7

8шт.
