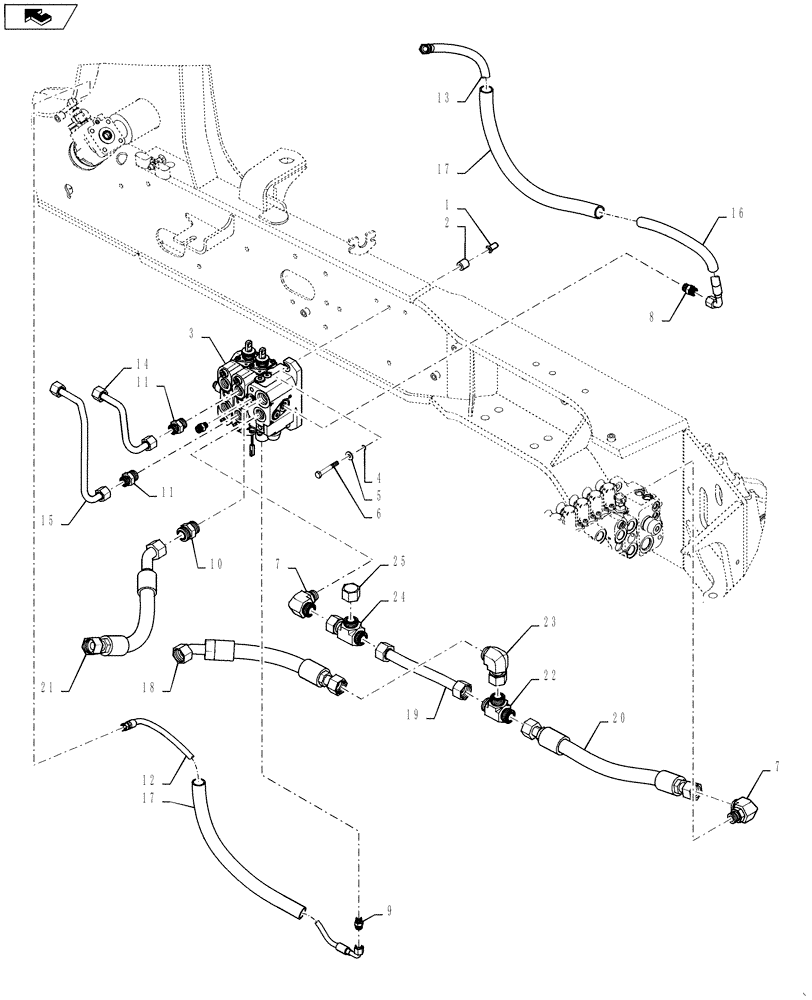

Запчасти Case 590SN (35.701.07[02]) - HYDRAULICS - VALVE, LOADER CONTROL (2 SPOOL) (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS

1

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.

2

87585960

SPACER,11mm ID x 22mm OD x 22mm L

Valve Mounting

3шт.

3

84219975

VALVE

Loader 2 Spool Closed Center; See Fig. 35.724.09

1шт.

4

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

3шт.

5

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

6

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

3шт.

7

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

2шт.

7

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

1шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

1шт.

10

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

10

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

4шт.

11

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

84284694

HOSE ASSY.,6.3mm ID x 1446mm L

Steering Pilot

1шт.

13

84358584

HOSE ASSY.,12.5mm ID x 1617mm L

Steering Pressure

1шт.

14

84293669

TUBE

Loader Lift Port A

1шт.

15

84293671

TUBE

Loader Lift Port B

1шт.

16

84336430

HOSE PROTECTION

1шт.

17

84329867

HOSE PROTECTION,26.87mm ID x 590mm L

2шт.

18

84523983

HYDRAULIC HOSE,25mm ID x 458mm L

HOSE ASSY.; Pressure From Pump

1шт.

19

84523969

HYD TUBE

TUBE; Pressure To Loader

1шт.

20

84523970

HYDRAULIC HOSE,25.4mm ID x 538mm L, SAE 100R12

HOSE ASSY.; Loader To Backhoe Valve

1шт.

21

84523971

HYDRAULIC HOSE,25mm ID x 505mm L

HOSE ASSY.; Valve To Filter

1шт.

22

87016914

TEE,1 7/16"-12 ORFS

1шт.

22

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

23

84989413

ELBOW,90 Degree, 1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw

1шт.

23

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

24

86641295

TEE,1-7/16"-12 ORFS to Swivel

1шт.

24

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

25

9847690

CAP,1-7/16" - 12 ORFS

1шт.
