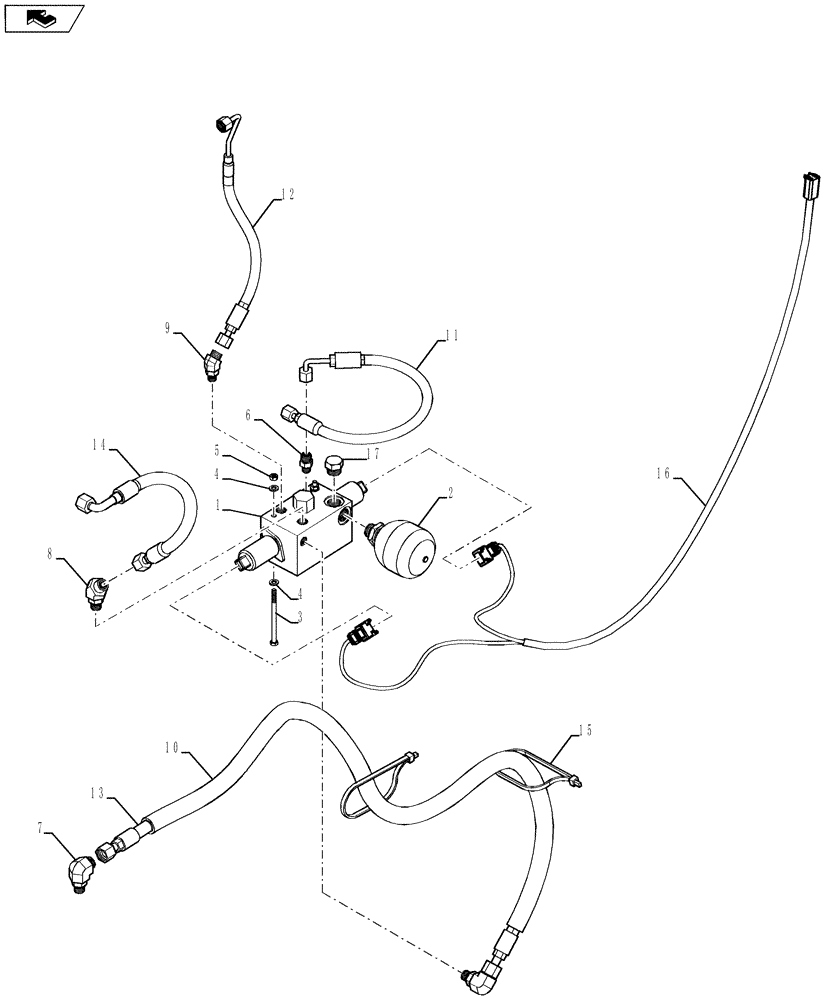

Запчасти Case 590SN (35.701.01[02]) - HYDRAULICS - LOADER 4 IN 1 (35) - HYDRAULIC SYSTEMS

1

87566480

VALVE

Proportional Control, 4x1 or 6x1 Clam Bucket

1шт.

2

87425225

ACCUMULATOR,0.16L

1шт.

3

814-6090

BOLT,Hex, M6 x 1 x 90mm, Cl 8.8

2шт.

4

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

Washer

4шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

6

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

1шт.

7

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

2шт.

8

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

1шт.

9

201-331

ELBOW,45 Degree, 9/16"-18 x 7/16"-20. Adj, ORFS

1шт.

10

84284222

GUARD,19mm ID x 1140mm L

1шт.

11

84256410

HOSE ASSY.,6.3mm ID x 488mm L

1шт.

12

84260774

TUBE

1шт.

13

84255991

HOSE ASSY.,10mm ID x 1283mm L

1шт.

14

84391231

HYDRAULIC HOSE,10mm ID x 387mm L

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

16

87651975

WIRE HARNESS

1шт.

17

218-5156

PLUG,Hex Hd, 3/4"-16 ORB

1шт.
