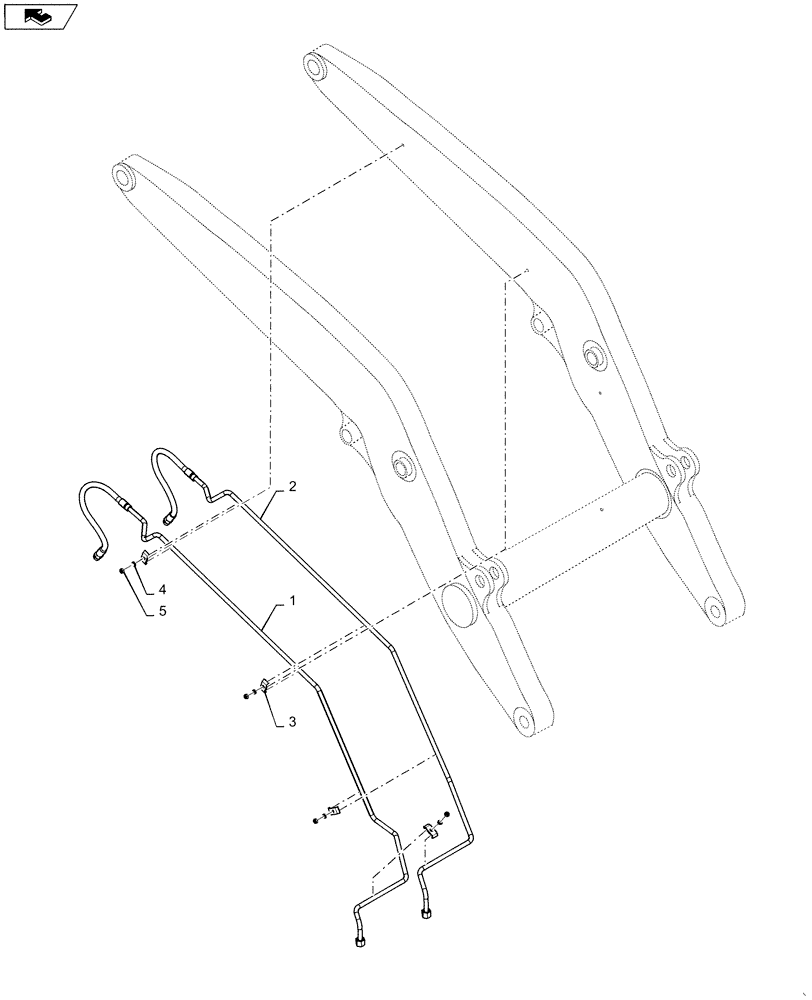

Запчасти Case 590SN (35.701.01[01]) - HYDRAULICS - LOADER 4 IN 1 (35) - HYDRAULIC SYSTEMS

1

84282570

HYD TUBE

4-in-1 Bucket Aux. Port B, Replaced by 48080655 & 48087369

1шт.

1

48080655

HYD TUBE

1шт.

1

48087369

HYDRAULIC HOSE

1шт.

2

84282567

HYD TUBE

4-in-1 Bucket Aux. Port A, Replaced by 48080670 & 48087369

1шт.

2

48080670

HYD TUBE

1шт.

2

48087369

HYDRAULIC HOSE

1шт.

3

D138055

CLAMP

4шт.

4

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

5

86500689

NUT,M10 x 1.5, Cl 10

4шт.
