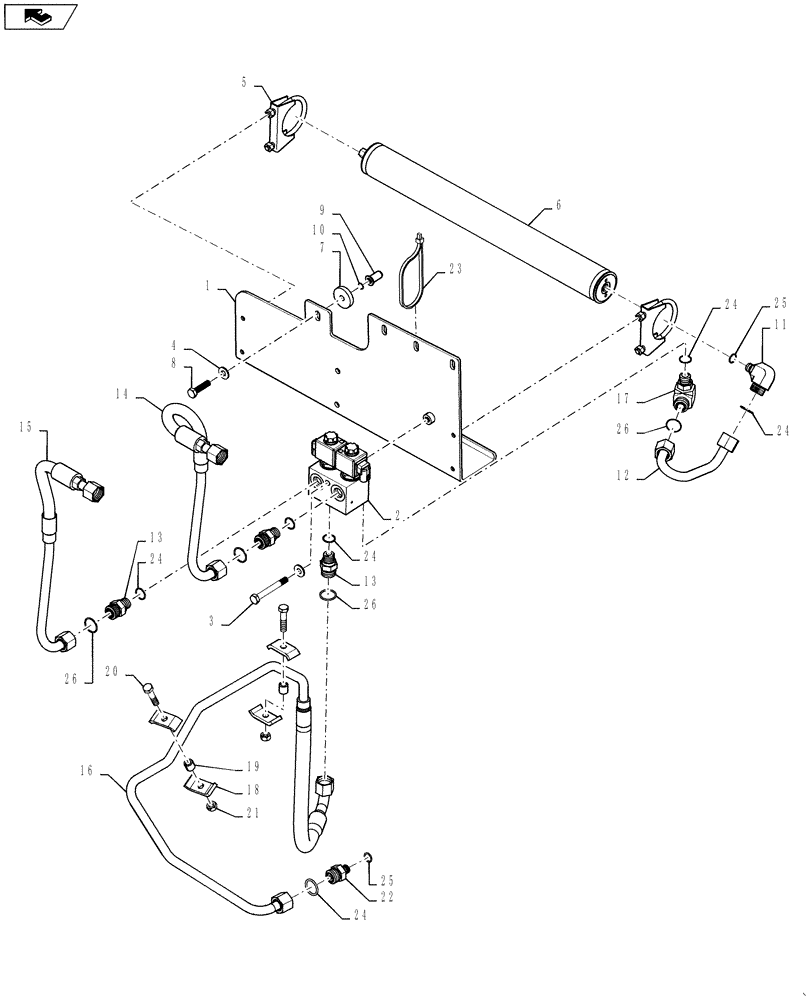

Запчасти Case 590SN (35.350.02) - HYDRAULICS - RIDE CONTROL (35) - HYDRAULIC SYSTEMS

1

87421213

BRACKET

1шт.

2

84348784

SOLENOID VALVE

Ride Control Valve

1шт.

3

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

5

A13240

CLAMP,2-5/8" ID

2шт.

6

448284A1

ACCUMULATOR,275 Bar

Ride Control Accumulator

1шт.

7

87423067

SPACER,11mm ID x 40mm OD x 8mm L

2шт.

8

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

9

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

2шт.

10

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

11

201-312

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 9/16" - 18 Male ORB

1шт.

12

84232491

HYD TUBE

Ride, Serial Range: Control-Accumulator

1шт.

13

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

3шт.

14

84290480

HYD TUBE

Ride Control P2 Port

1шт.

15

84290490

HYD TUBE

Ride Control P1 Port

1шт.

16

84291884

HYD TUBE

Ride Control T Port

1шт.

17

201-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 3/4" - 16 Male ORB

1шт.

18

D138055

CLAMP

4шт.

19

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

20

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

22

201-132

HYD CONNECTOR,1"-14 ORFS x 7/16"-20 ORB

To Back of Hydraulic Filter

1шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

24

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

26

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.
