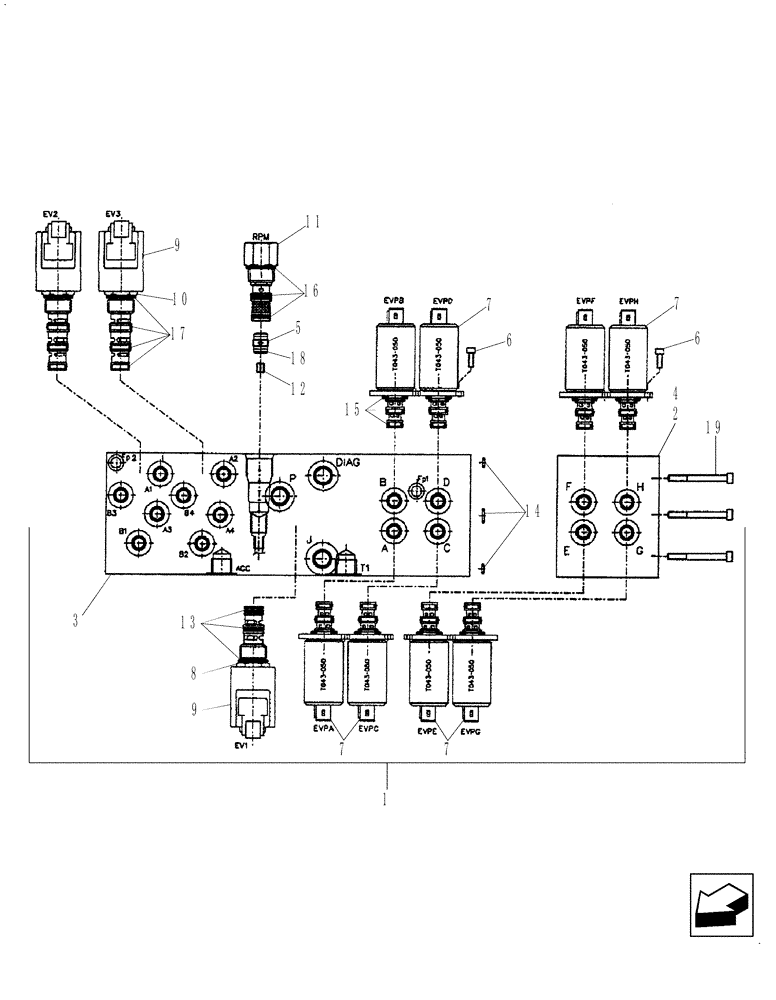

Запчасти Case 590SN (35.150.14[03]) - HYDRAULICS - VALVE, PRESSURE REDUCING (4 SPOOL) (WITH PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

1

87434621

CONTROL VALVE

Pressure Reducing, Four Spool, Pilot Controls; Inc. Ref 2-19

1шт.

2

85828048

MANIFOLD VALVE

Assembly, 2-Function Add-on Manifold, Incl 4, 7 (4 ea)

1шт.

3

85828015

BLOCK

Manifold

1шт.

4

85828054

BLOCK

Manifold

1шт.

5

85827992

CHECK VALVE

Incl 18

1шт.

6

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

16шт.

7

85827993

SOLENOID VALVE

Pressure Reducing; Incl 15

8шт.

RH/LH Stabilizer Retract PWM, RH/LH Stabilizer Extend PWM, Extendahoe Retract PWM, Extendahoe Extend PWM

1шт.

8

85827994

SOLENOID VALVE

Cartridge, 3 Way, 2 Position; Incl Ref 9, 13

1шт.

Joystick Enable Solenoid

1шт.

9

85827995

COIL

With Diode

3шт.

10

85827996

SOLENOID VALVE,2 Section

Cartridge, 4 Way, 2 Position; Incl Ref 9, 17

2шт.

Pattern Change Solenoids

1шт.

11

85827997

VALVE

Mechanical Pressure Reducing, With Fixed Setting; Incl 16

1шт.

12

85828005

ORIFICE

1.8 mm

1шт.

13

85827998

SEAL KIT

1шт.

14

85827999

SEAL KIT

1шт.

15

85828000

SEAL KIT

8шт.

16

85828001

SEAL KIT

1шт.

17

85828002

SEAL KIT

2шт.

18

85828003

O-RING,1mm Thk x 9mm ID

1шт.

19

85828061

SCREW,M5 x 80mm

3шт.
