(35.150.09) - VALVE SECTION - BACKHOE, DIPPER (WITH PILOT CONTROLS)

Запчасти Case 590SN (35.150.09) - VALVE SECTION - BACKHOE, DIPPER (WITH PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

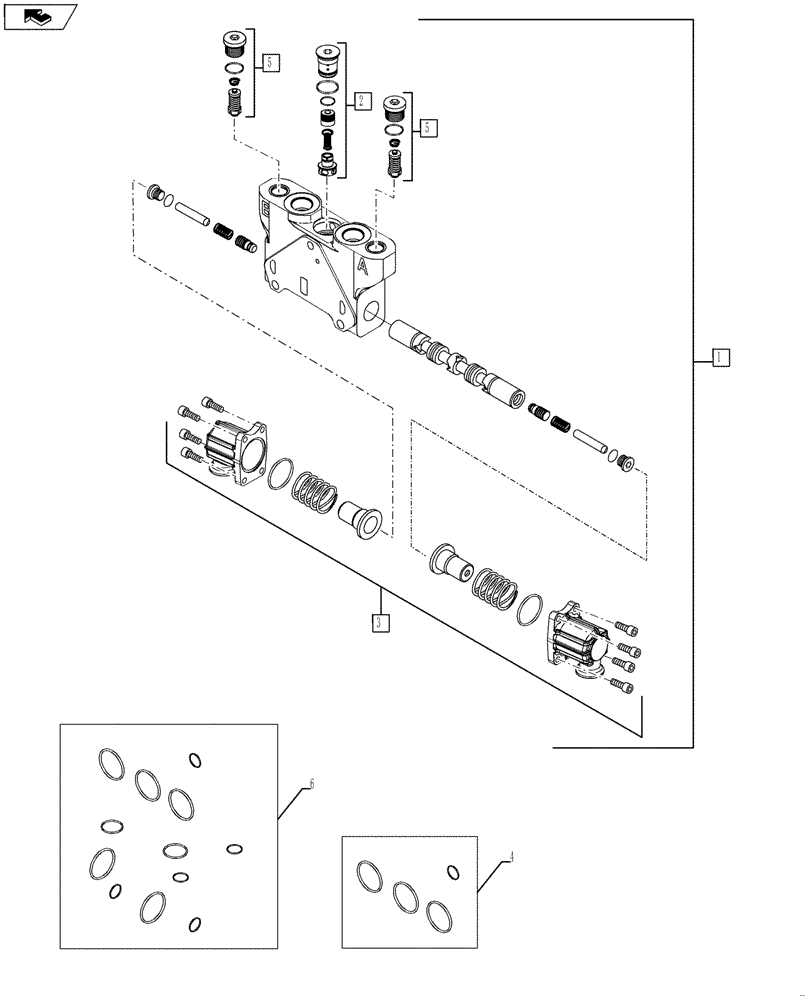

Схема запчастей Case 590SN - (35.150.09) - VALVE SECTION - BACKHOE, DIPPER (WITH PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS
4
5
6
1
2
3
5
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84278710

HYD VALVE SECTION

Dipper

1шт.

2

84157590

COMPENSATOR

1шт.

3

85826344

KIT,Operation

1шт.

4

85825473

SEAL KIT

1шт.

5

84295049

VALVE PRESSURE RELIE,283 Bar

2шт.

6

87617657

O-RING KIT

1шт.
