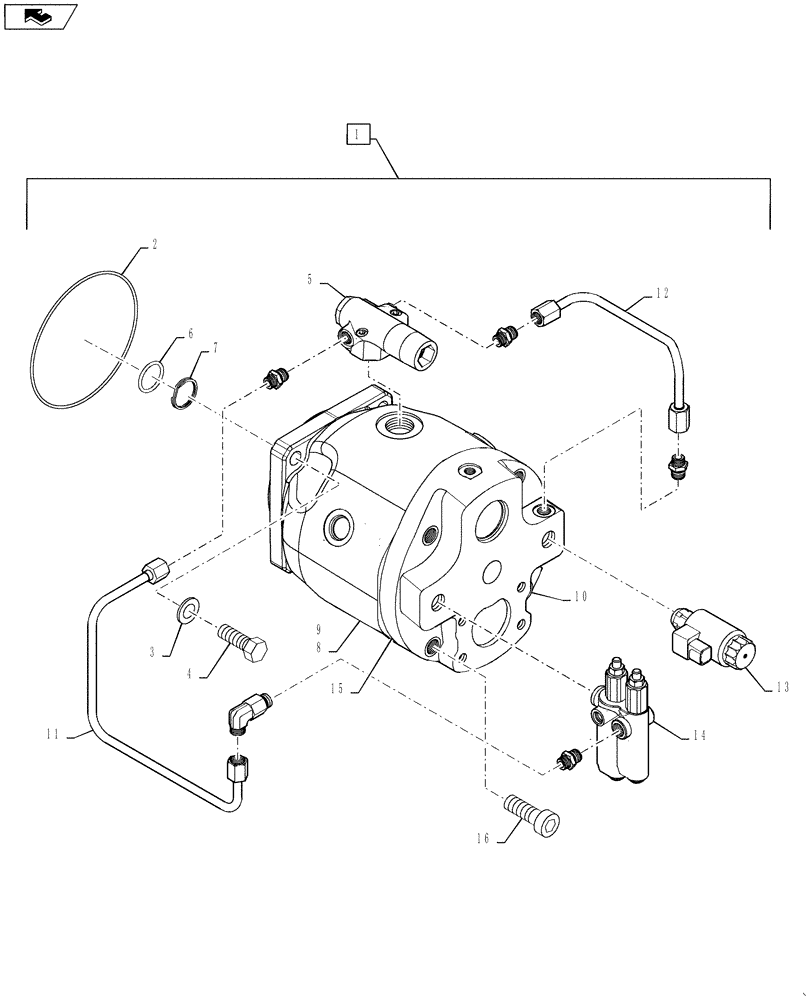

Запчасти Case 590SN (35.106.01[03]) - HYDRAULICS - PUMP, EQUIPMENT (590SN) (35) - HYDRAULIC SYSTEMS

1

84218971

HYDRAULIC PUMP,74 CC

Incl. Ref 7 - 18

1шт.

1

84218971R

REMAN-HYD PUMP

74 CC

1шт.

1

84218971C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

175156

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

3

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

4

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

If Used (Not Shown)

4шт.

84419227

STUD

STUD M12 x 1.25 x 50, 8.8

4шт.

5

825-11412

NUT,M12 x 1.25, Cl 8

4шт.

6

84292404

HARNESS

Suppressor Diode

1шт.

7

84312221

RING

1шт.

8

84312210

O-RING

Inside Pump

1шт.

9

84312220

O-RING

Inside Pump

4шт.

10

84312301

HEX SOC SCREW

4шт.

11

84499590

SERVICE KIT

Long Torque Control Tube

1шт.

12

84499592

SERVICE KIT

Short Torque Control Tube

1шт.

13

84312179

CONTROL VALVE

1шт.

14

84311934

CONTROL VALVE

1шт.

15

84312299

GASKET

1шт.

16

84312223

HEX SOC SCREW

4шт.

17

84311937

CONTROL VALVE

1шт.

18

84312204

SEALING RING

SEALRING

2шт.
