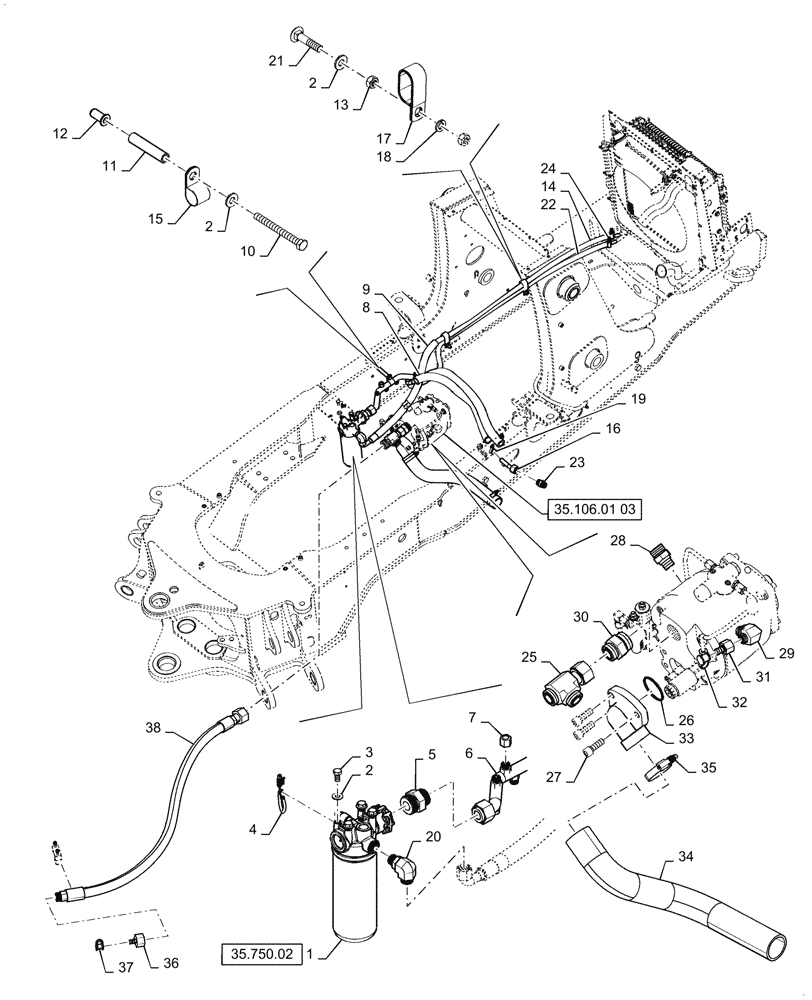

Запчасти Case 590SN (35.106.01[01]) - HYDRAULICS - PUMP INSTALL (580SN, 580SN WT, 590SN) (35) - HYDRAULIC SYSTEMS

1

84248499

HYDRAULIC OIL FILTER

1шт.

2

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

3

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

4

84292224

WIRE HARNESS

1шт.

5

9847247

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

2шт.

5

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

5

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

2шт.

6

84251872

HYD TUBE

1шт.

7

87331950

CAP ASSY.,Hex, 11/16"-16

2шт.

8

87656501

HOSE PROTECTION,340.00 mm ID x 540.00 mm

2шт.

9

NS

NOT SERVICED

Hose Guard

1шт.

10

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

1шт.

11

84256840

SPACER,11mm ID x 15.8mm OD x 74mm L

1шт.

12

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

1шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

14

84326090

HOSE ASSY.,16mm ID x 1857mm L

Cooler Supply

1шт.

15

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

16

84245410

HYD TUBE

VV Pump Return

1шт.

16

84325951

HOSE ASSY.,19mm ID, 745mm L, SAE100R6

Case Drain (Attaches to Hyd Connector 28)

1шт.

17

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.

18

892-11010

LOCK WASHER,M10

2шт.

19

277678A1

CLAMP,Constant Torque 1 1/8 Inch

2шт.

20

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

20

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

1шт.

22

84326092

HOSE ASSY.,16mm ID x 1422mm L

Cooler Return

1шт.

23

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

1шт.

23

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

23

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

328186A1

HOSE CLAMP,400mm L

2шт.

25

201-418

TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS

1шт.

25

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

26

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

27

864-12035

HEX SOC SCREW,M12 x 35mm, Cl 8.8

3шт.

28

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

1шт.

28

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

85802961

ELBOW,13/16"-16 UN-2A x 7/8"-14 UNF-2A

1шт.

29

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

29

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

9847247

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

2шт.

30

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

30

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

2шт.

31

322529A1

COUPLING

1шт.

32

H434163

DUST CAP

2шт.

33

87727923

FLANGE

1шт.

34

87729268

HOSE,50.800 mm ID x 421.50 mm, SAE 30R7

Var Volume Pump Suction

1шт.

35

259044A1

CLAMP

2шт.

36

84241474

DIAGNOSTIC COUPLER

Male

1шт.

37

H434163

DUST CAP

1шт.

38

84282578

HOSE,19mm ID x 1270mm L

Attenuator - Routed Toward Rear of Machine in Illustration

1шт.
