(27.110.02[03]) - AXLE, REAR DRIVE - DIFFERENTIAL LOCK (580SN WT, 590SN)

Запчасти Case 590SN (27.110.02[03]) - AXLE, REAR DRIVE - DIFFERENTIAL LOCK (580SN WT, 590SN) (27) - REAR AXLE SYSTEM

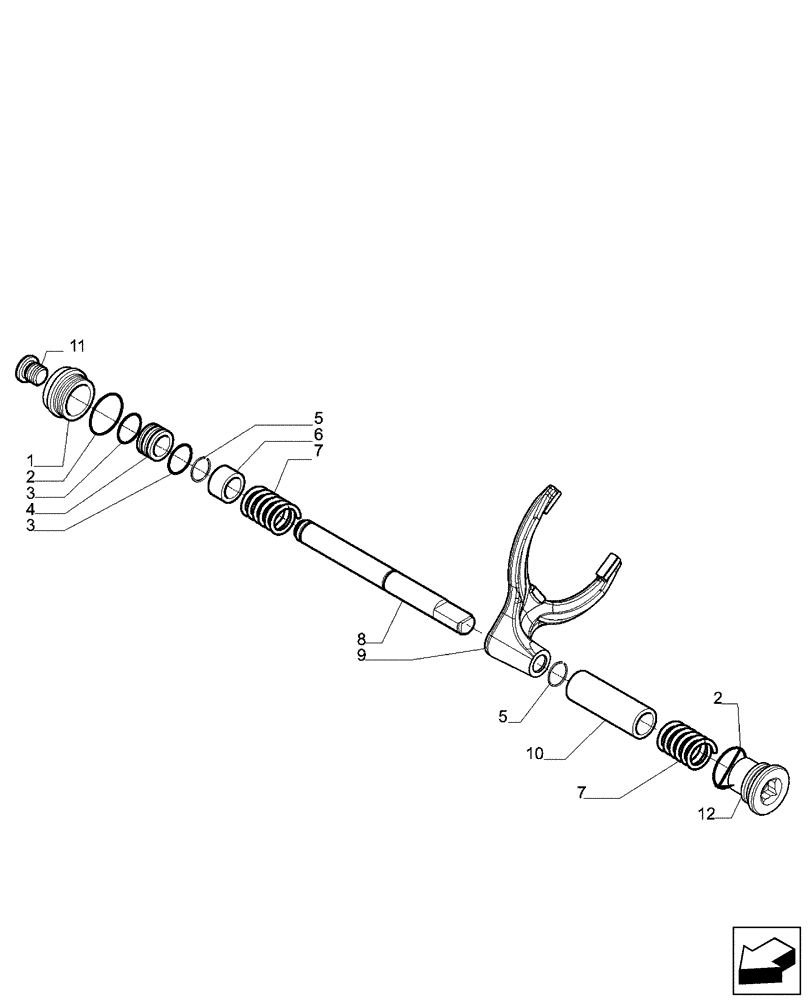

Схема запчастей Case 590SN - (27.110.02[03]) - AXLE, REAR DRIVE - DIFFERENTIAL LOCK (580SN WT, 590SN) (27) - REAR AXLE SYSTEM
10
3
3
4
7
8
6
2
5
7
1
2
9
11
12
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87395386

REAR AXLE

580SN WT, 590SN Models, Inc 1 - 12

1шт.

87395386R

REMAN-AXLE DIFFERENT

580SN WT WIDE TRACK, 590SN, Both BACKHOE LOADER, TIER 3

1шт.

87395386C

CORE-AXLE, MFD

Return Number

1шт.

1

87708413

CYLINDER

Differential Locking

1шт.

2

87708415

O-RING

2шт.

3

238-8217

O-RING,0.139" Thk x 1.171" ID, -217, Cl 8, 90 Duro

2шт.

4

292212A1

PISTON

Differential Lock

1шт.

5

87708417

CIRCLIP

2шт.

6

87708420

BUSHING

1шт.

7

175966A1

SPRING

2шт.

8

87708963

SHAFT LOCK

Rear Axle Differential

1шт.

9

87708424

FORK

1шт.

10

87708964

BUSHING

1шт.

11

9625178

PLUG,9/16" - 18 ORB

1шт.

12

87708965

PLUG

1шт.
