(27.100.08[02]) - AXLE, REAR DRIVE - MOUNTING (580SN WT, 590SN)

Запчасти Case 590SN (27.100.08[02]) - AXLE, REAR DRIVE - MOUNTING (580SN WT, 590SN) (27) - REAR AXLE SYSTEM

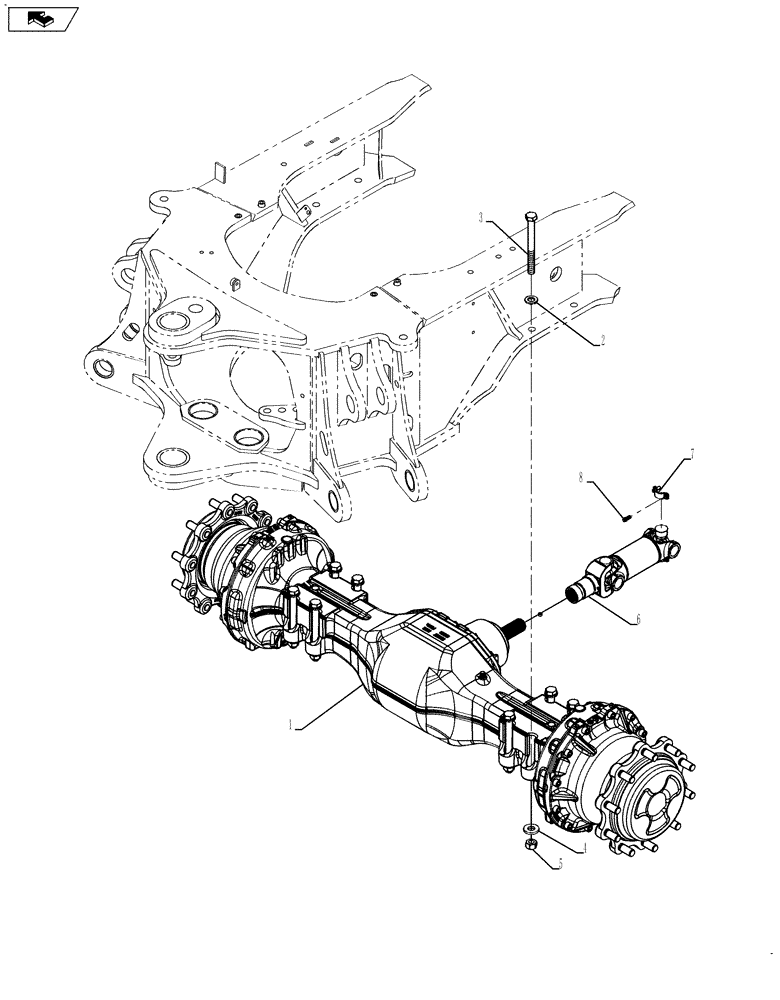

Схема запчастей Case 590SN - (27.100.08[02]) - AXLE, REAR DRIVE - MOUNTING (580SN WT, 590SN) (27) - REAR AXLE SYSTEM
6
home
3
1
8
2
7
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87395386

REAR AXLE

1шт.

1

87395386R

REMAN-AXLE DIFFERENT

580SN WT WIDE TRACK, 590SN, Both BACKHOE LOADER, TIER 3

1шт.

1

87395386C

CORE-AXLE, MFD

Return Number

1шт.

2

NS

NOT SERVICED

8шт.

3

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

8шт.

4

87618533

WASHER,21mm ID x 46mm OD x 6.4mm Thk

8шт.

5

829-1420

NUT,M20, Cl 10

8шт.

6

87693489

DRIVE SHAFT

1шт.

7

D137626

CLAMP,30.175mm D Clamping Pipe

2шт.

8

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

4шт.
