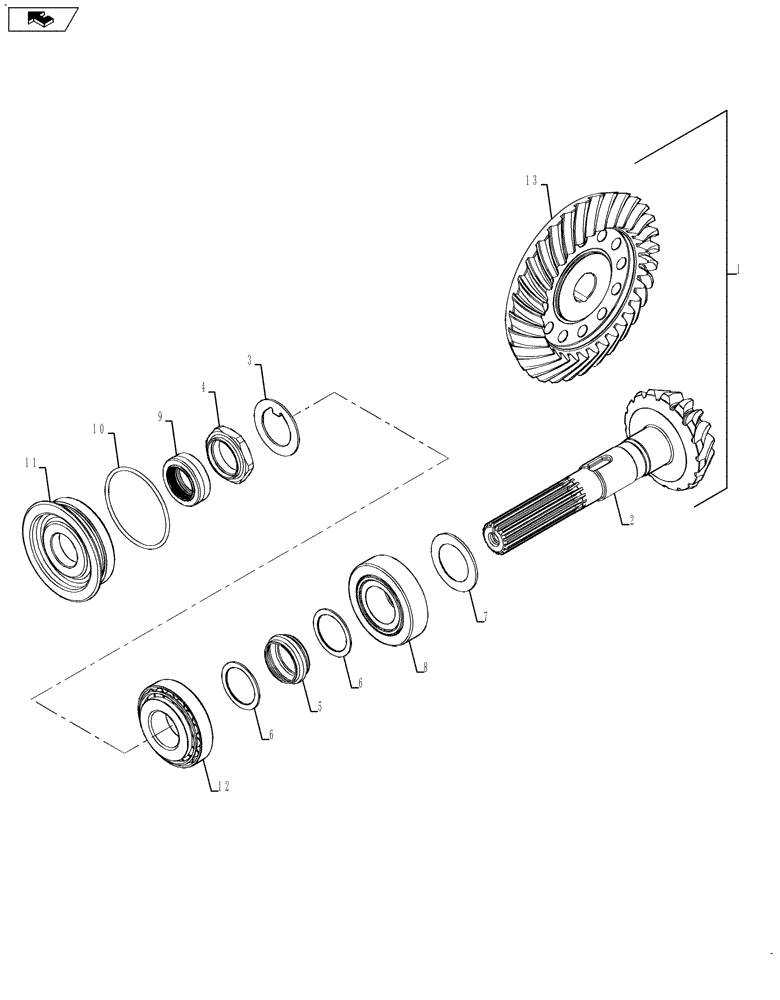

Запчасти Case 590SN (25.102.01[03]) - AXLE, FRONT DRIVE - RING AND PINION (590SN) (25) - FRONT AXLE SYSTEM

1

84299357

GEAR SET

15:32 Ratio 2.214:1, Inc 2,13

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR Pinion

1шт.

3

84161677

E-RING

1шт.

4

84274691

NUT,M40 x 1.5

Ring

1шт.

5

84299341

SLEEVE,42.15mm ID x 50.5mm OD x 18.5mm L

Collapsible

1шт.

6

84311242

SPACER,40.45mm ID x 52mm OD x 1.65mm L

2шт.

7

84299343

WASHER,41.5mm ID x 63mm OD x 2.5mm Thk

1шт.

8

84299345

ROLLER BEARING,41.28mm ID x 90mm OD x 30mm L

1шт.

9

84258508

SEAL,35mm ID x 52mm OD x 18.2mm Thk

Oil

1шт.

10

638-54825

O-RING,3.55mm Thk x 82.5mm ID, Cl 5, 75 Duro

1шт.

11

84318880

HOUSING

Cover, Differential

1шт.

12

87747982

TAPERED BEARING,40mm ID x 90mm OD x 25.25mm W

1шт.

12

84557103

TAPERED BEARING,40mm ID x 90mm OD x 25.25mm W

, Start Year: 21-JUL-14

1шт.

13

NSS

NOT SOLD SEPARAT

RING Gear

1шт.
