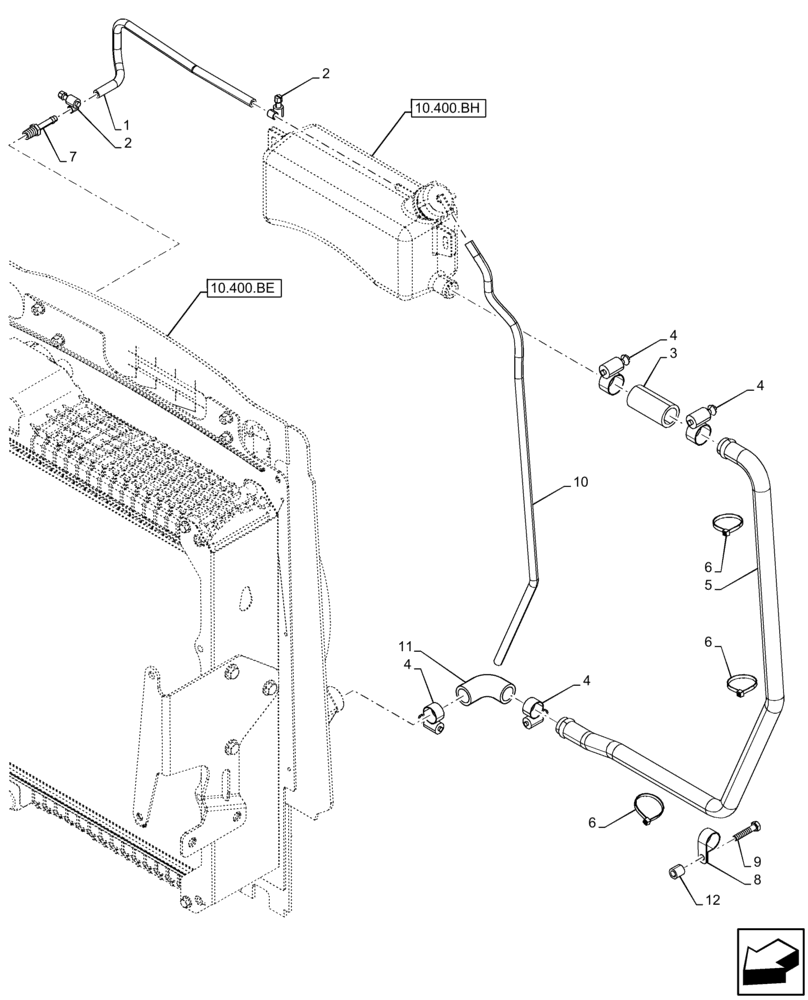

Запчасти Case 590SN (10.400.AK) - VAR - 423000, 442082, 747853, 747854, 747855 - EXPANSION TANK, HOSE (10) - ENGINE

1

87715487

RADIATOR HOSE,7.90 mm ID x 440.00 mm, SAE J30, SAE 30R6 Or SAE 20 R4 Class D1

1шт.

2

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

3

87367622

HOSE,25.40 mm ID x 60.00 mm, SAE 20R3 CLASS D-1 Or D-2

Recovery Bottle

1шт.

4

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

5

47540340

TUBE

Radiator Fill

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

7

87301325

FITTING,5/16" Hose X 1/4" NPTF Beaded

1шт.

8

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

9

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

10

87616934

HOSE,6.35mm ID x 750mm L, SAE 30R6

Radiator Bottle Overflow

1шт.

11

87454376

HOSE,25mm ID, 29.95mm OD, 90 Degree

Deaeration Elbow

1шт.

12

87418360

SPACER,9.8mm ID x 16mm OD x 16mm W

8 x 16mm

1шт.
