(88.100.55[05]) - DIA KIT, PILOT CONTROLS, JOYSTICK, SWITCH

Запчасти Case 590SN (88.100.55[05]) - DIA KIT, PILOT CONTROLS, JOYSTICK, SWITCH (88) - ACCESSORIES

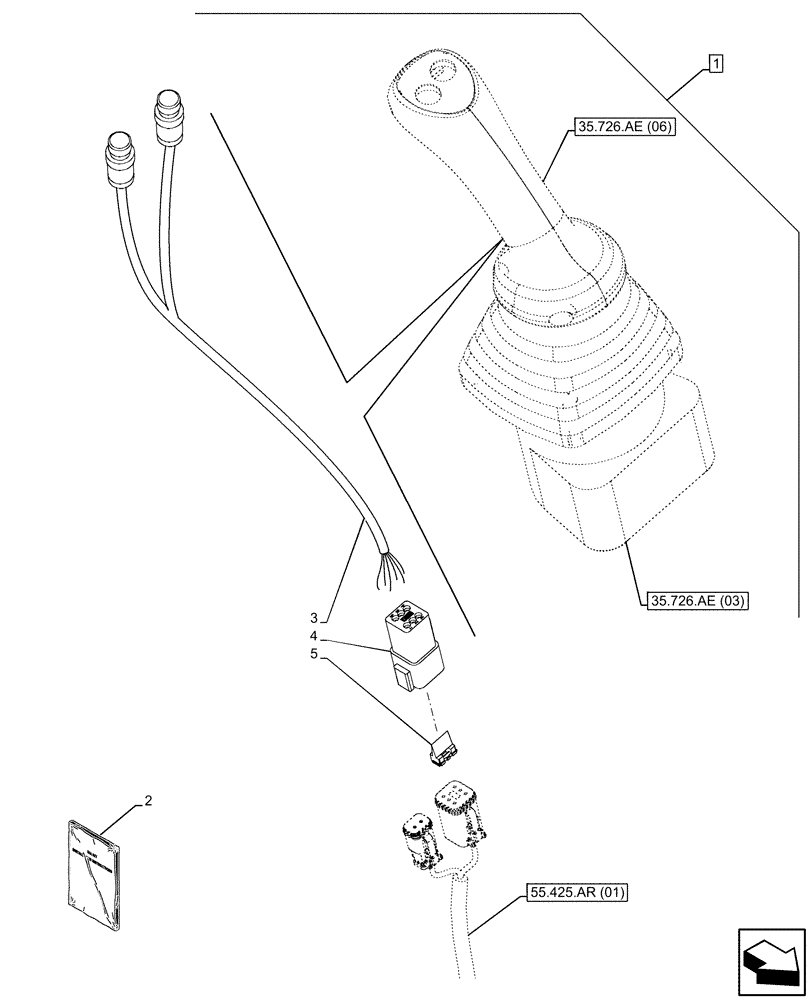

Схема запчастей Case 590SN - (88.100.55[05]) - DIA KIT, PILOT CONTROLS, JOYSTICK, SWITCH (88) - ACCESSORIES
35.726.ae (06)
4
3
1
5
2
55.425.ar (01)
35.726.ae (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47501544

CONSTRUCTION DIA

No Aux to Combo,STD, PC, Incl 2 - 5

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

47607728

INSTRUCTION

1шт.

3

84134639

SWITCH

ASSY, Push Button

2шт.

4

225350C1

ELEC CONNECTOR,Male, 6 Pin

1шт.

5

225353C1

WEDGE,Lock, Black

1шт.
