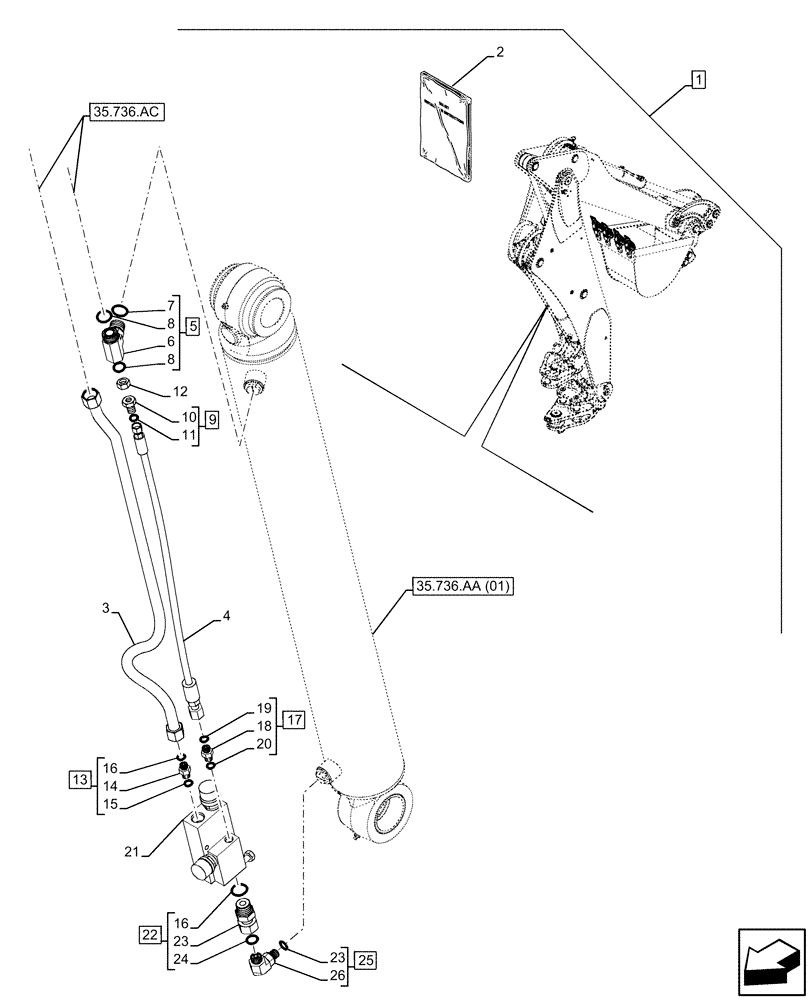

Запчасти Case 590SN (88.100.35[37]) - DIA KIT, BOOM, LOCK VALVE (88) - ACCESSORIES

1

84588441

CONSTRUCTION DIA

Boom Lock Valve, Incl 2 - 26

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

84588449

INSTRUCTION

1шт.

3

84522366

HYD TUBE

Boom, Inlet

1шт.

4

84522368

HYDRAULIC HOSE,6.3mm ID x 975mm L

6.3mm ID x 975mm L, Boom Lock Valve, Pilot Control

1шт.

5

84375320

BRANCH TEE

ASSY, Incl 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Tee. Incl in 5

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

9

201-149

REDUCER,13/16"-16 Male x 1 7/16"-12 Fem, ORFS

ASSY, Incl 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Reducer, Incl in 9

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

203-905

TUBE NUT,1 7/16"-12 ORFS

1шт.

13

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

ASSY, Incl 14 - 16 (Qty 1)

1шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

1шт.

15

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

16

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

17

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

Connector, Incl in 17

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

84574590

VALVE

Boom, Lock

1шт.

22

85805124

HYD CONNECTOR,1-14 ORFS x 7/8-14 ORB

ASSY, Incl 16 (Qty 1), 23, 24 (Qty 1)

1шт.

23

NSS

NOT SOLD SEPARAT

Connector, Incl in 22

1шт.

24

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

25

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 23 (Qty 1), 26

1шт.

26

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 25

1шт.
