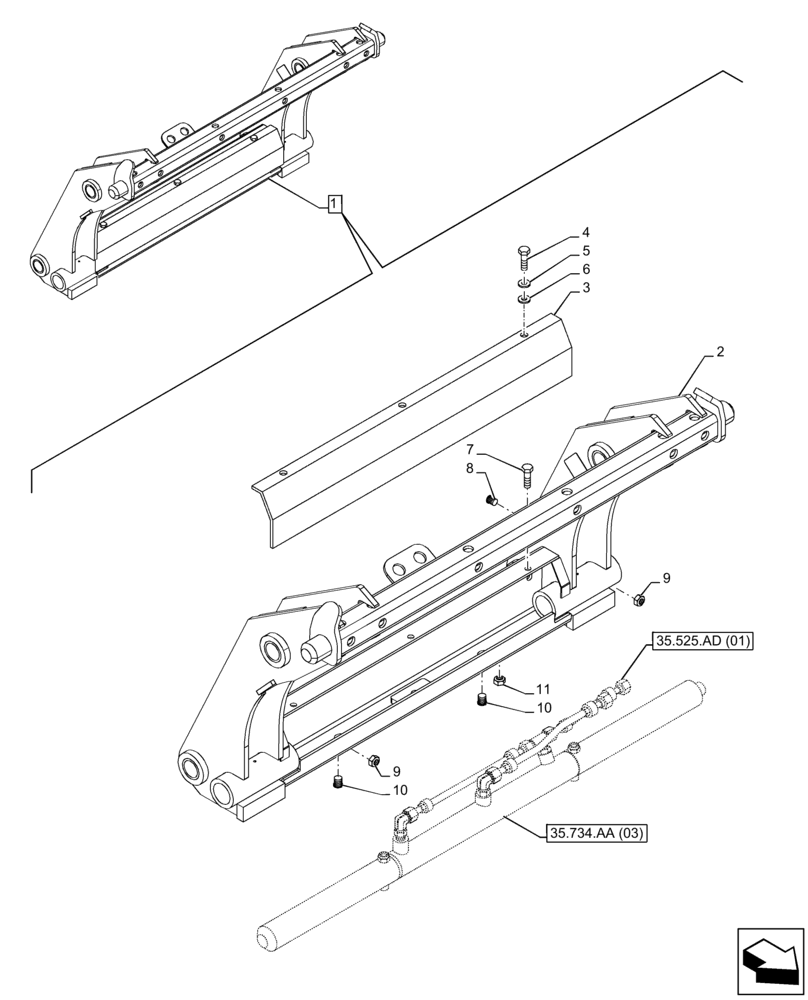

Запчасти Case 590SN (82.300.AX[02]) - VAR - 423049 - BUCKET, QUICK COUPLER (82) - FRONT LOADER & BUCKET

1

84265982

COUPLING

ASSY, Loader with Auxiliary Hydraulic, Incl 2 - 11

1шт.

See Loader Coupler Components also in Figure 35.525.AD (01) (02), 35.734.AA (03)

1шт.

2

NSS

NOT SOLD SEPARAT

Loader Coupler, Incl in 1

1шт.

3

84189105

COVER

1шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

5

80681

LOCK WASHER,5/16"

3шт.

6

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

3шт.

7

87472321

FASTENER

3шт.

8

87668376

CAP,9/16"-18 Inch THD

2шт.

9

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

10

305497A1

PLUG,1.25" x 0.5"

2шт.

11

86050277

NUT,5/16"-18, GB

1шт.
