Запчасти Case 590SN (82.300.AN[03]) - VAR - 423004 - BUCKET, 1.5 YD - 96INCH/2438MM LL (82) - FRONT LOADER & BUCKET

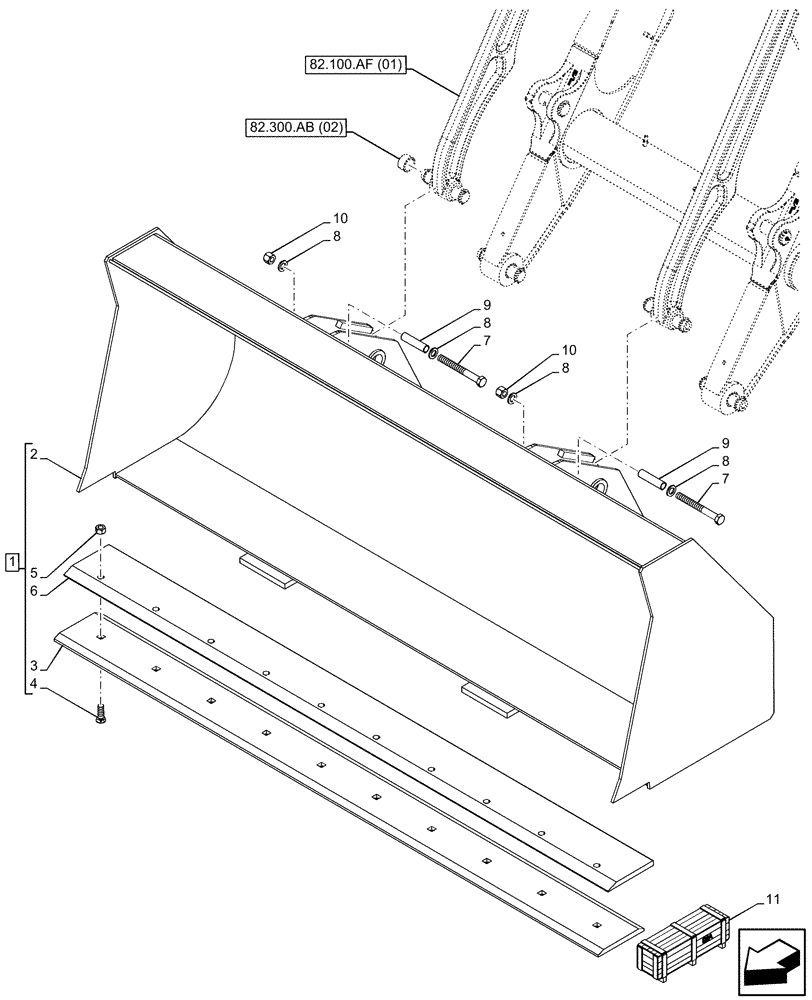

Схема запчастей Case 590SN - (82.300.AN[03]) - VAR - 423004 - BUCKET, 1.5 YD - 96INCH/2438MM LL (82) - FRONT LOADER & BUCKET
82.300.ab (02)
7
8
9
1
11
6
9
2
7
10
8
10
8
8
3
5
4
82.100.af (01)

Артикул

Название

Примечание

Количество

1

84479230

BUCKET,96 Inch LLGP

ASSY, 1.5YD 96Inch/2438mm LL, ASSY, Incl 2 - 10

1шт.

See Bucket Components also in Figure 82.300.AB (02)

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

87375241

EDGE,96 Inch / 2438mm, 10 Holes

1шт.

4

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

10шт.

5

429-1012

NUT,3/4"-10, G8

10шт.

6

332448A1

PLATE

1шт.

7

84334022

BOLT,Hex, M20 x 2.5 x 180mm, Cl 10.9

2шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

84235628

SPACER,21mm ID x 25mm OD x 100mm L

2шт.

10

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

11

84482613

BUCKET

Bucket 96 Inch LLGP, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 13
