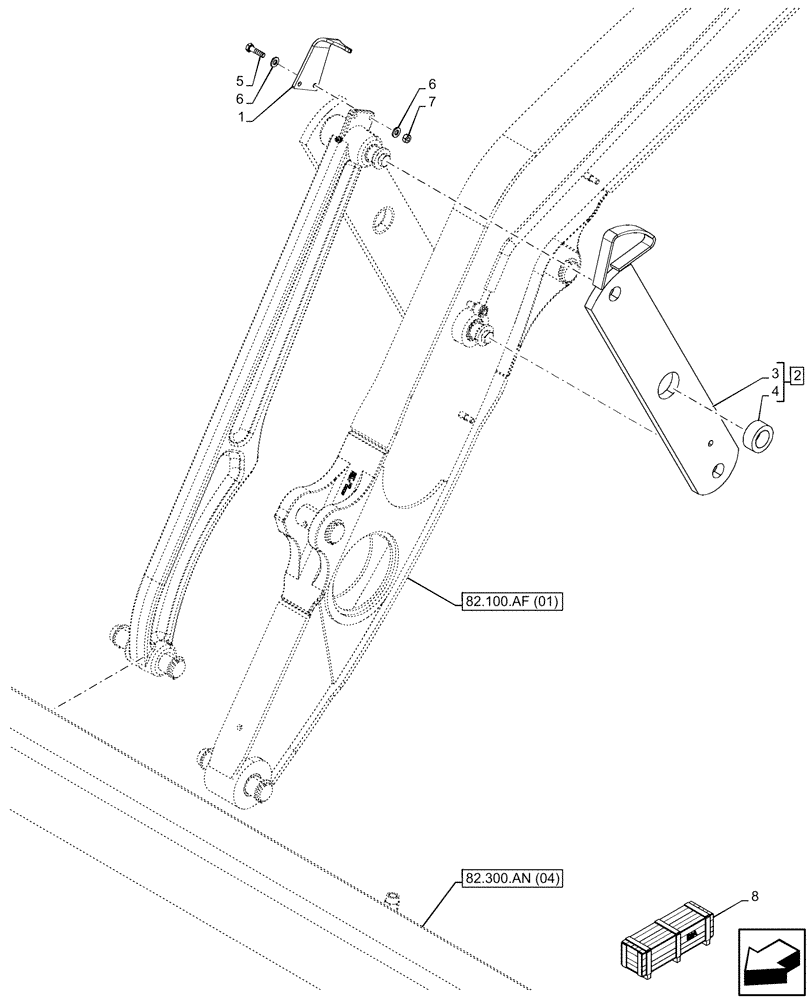

Запчасти Case 590SN (82.100.AF[03]) - VAR - 742433 - LOADER ARM, LINK (82) - FRONT LOADER & BUCKET

1

250851A1

POINTER

Indicator

1шт.

2

84301385

LINK BLOCK

Anti-Rollback, ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Link, Incl in 2

1шт.

4

84218019

BUSHING,55.23mm ID x 64.97mm OD x 25.4mm L

1шт.

5

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

8

47540572

CONSTRUCTION DIA

Bucket 93 Inch 4 in 1, Incl 1, 2, 4 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
