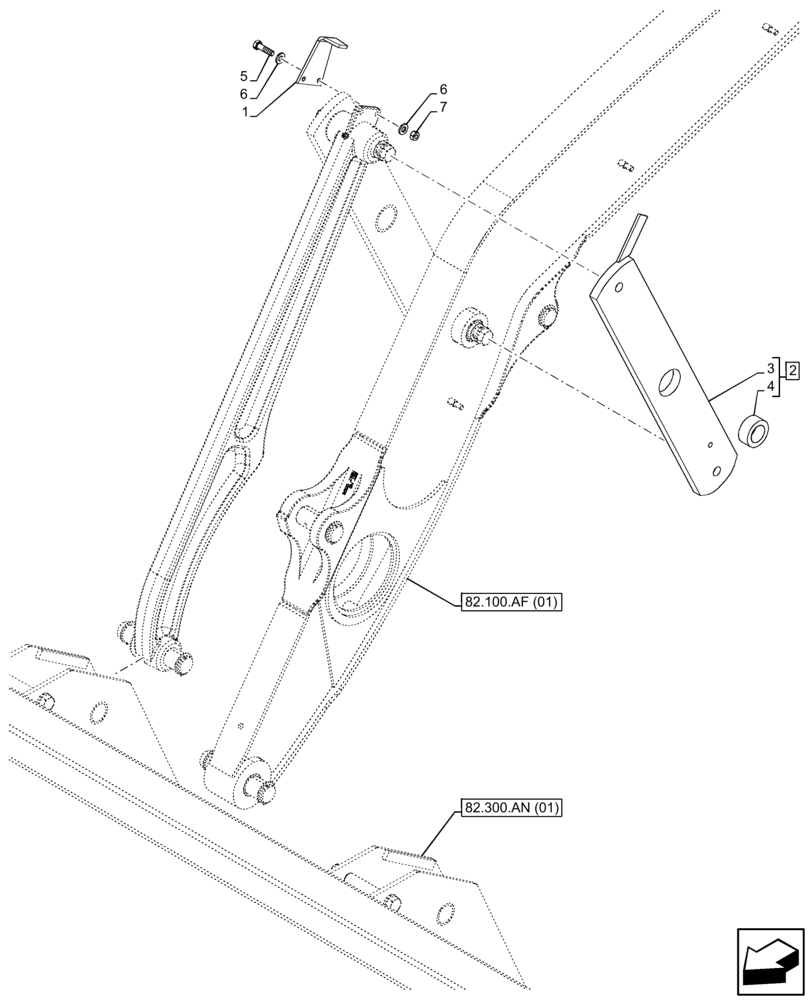

Запчасти Case 590SN (82.100.AF[02]) - VAR - 423003 - LOADER ARM, LINK (82) - FRONT LOADER & BUCKET

1

D121194

POINTER

Indicator

1шт.

2

47631890

LINK

Anti-Rollback, ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Link, Incl in 2

1шт.

4

D151034

BUSHING,50.23mm ID x 60mm OD x 25.4mm L

1шт.

5

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.
