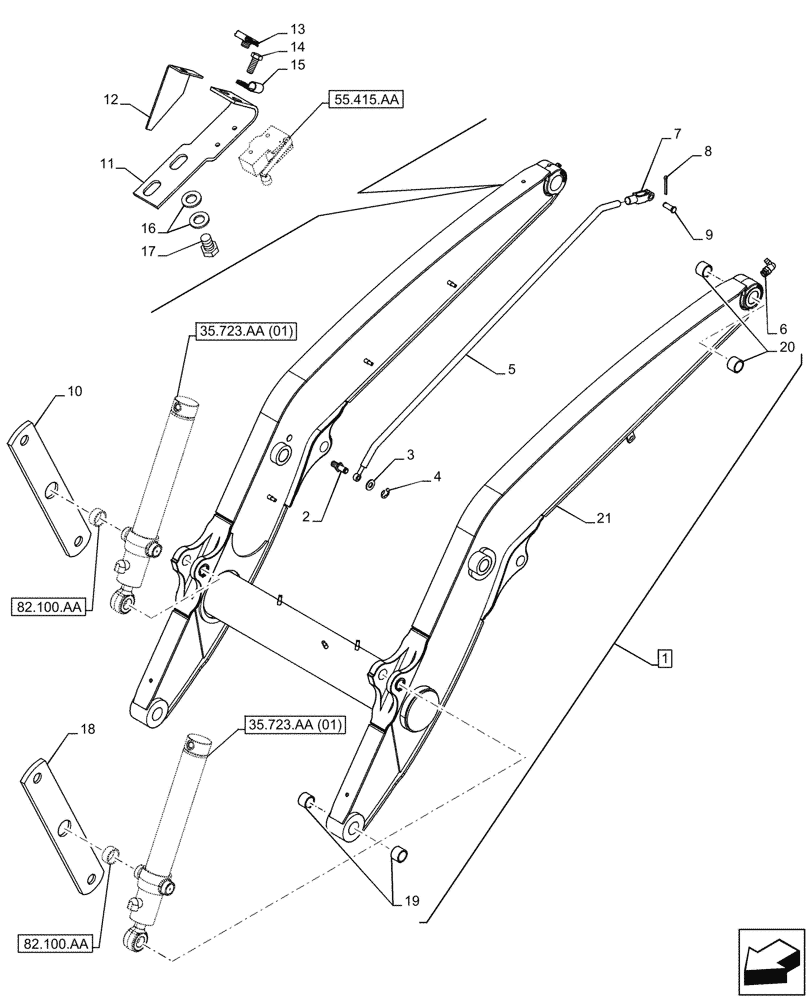

Запчасти Case 590SN (82.100.AF[01]) - FRONT LOADER, ARM (82) - FRONT LOADER & BUCKET

1

84296186

LOADER ARM

ASSY, Anti-Rollback RTD, Incl 6, 19 - 21

1шт.

2

192815A1

PIN,1/2" - 13, 1.85" L

1шт.

3

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

1шт.

4

103-3350

SNAP RING,#50, .392" Dia, E-Type

1шт.

5

84280257

ROD

1шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

7

D134900

CLEVIS,3/8-24"

1шт.

Welded to Rod

1шт.

8

432-612

COTTER PIN,3/32" x 3/4"

1шт.

9

87548980

CLEVIS PIN,3/8" x 1"

1шт.

10

84281219

LINK BLOCK

DH Inner

2шт.

11

128818A1

SUPPORT

1шт.

12

142524A1

PROTECTOR

1шт.

13

833-40406

NUT,M6, U

2шт.

14

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

15

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

1шт.

16

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

17

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

2шт.

18

84301381

LINK

LH Inner

1шт.

19

109268A1

BUSHING,40.3mm ID x 50mm OD x 35mm L

4шт.

20

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

4шт.

21

NSS

NOT SOLD SEPARAT

Loader Arm, Incl in 1

1шт.
