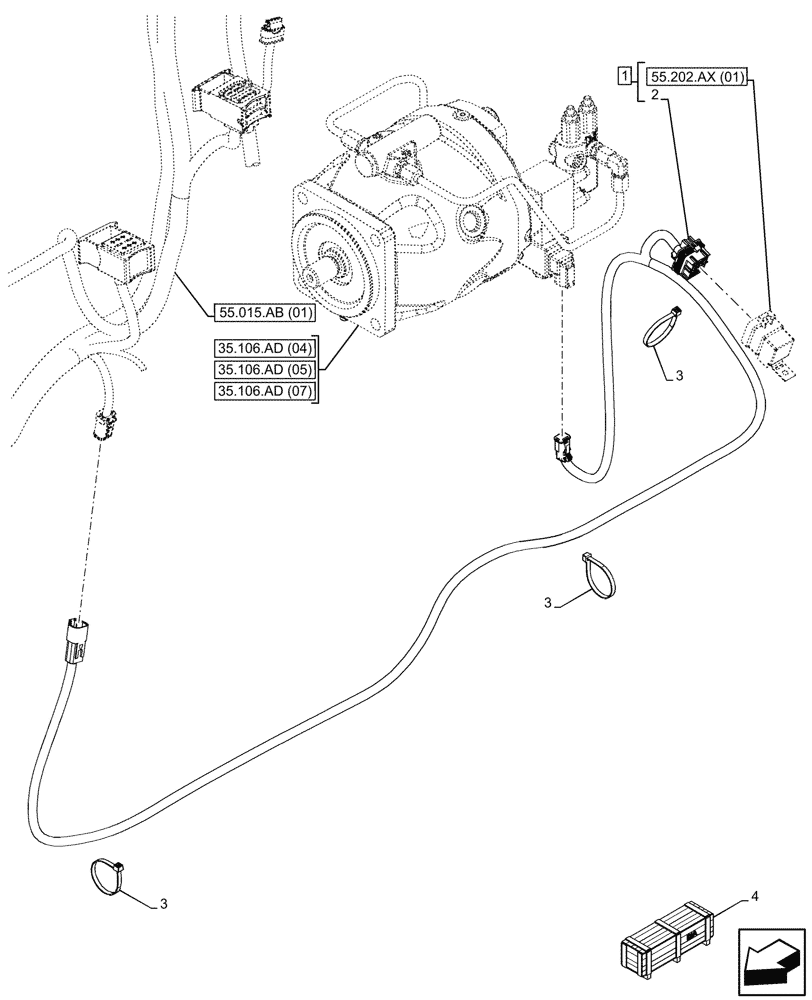

Запчасти Case 590SN (55.202.AD) - VAR - 423093 - COLD START SYSTEM, HARNESS (55) - ELECTRICAL SYSTEMS

1

84526859

JUMPER

ASSY, Cold Start Solenoid to Engine Harness, Incl 2

1шт.

See Harness Assy Components also in Figure 55.202.AX (01)

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

4

47834894

CONSTRUCTION DIA

Cold Start Aid, Mechanical, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
