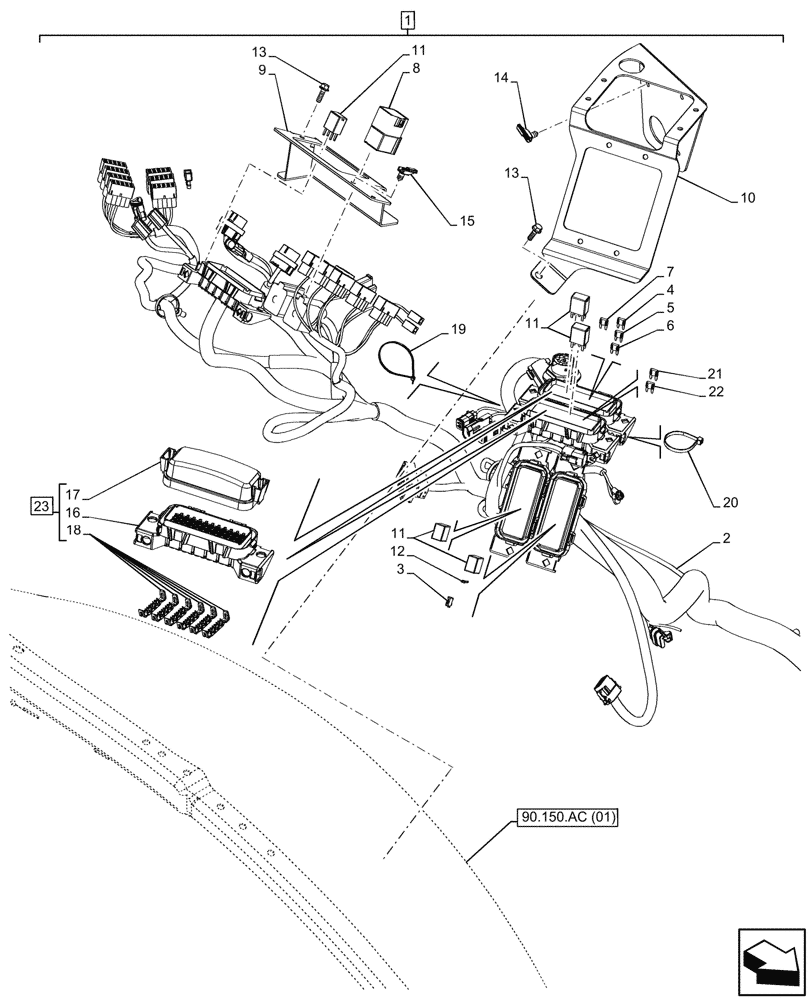

Запчасти Case 590SN (55.100.DO[09]) - VAR - 423060, 423061, 423062 - SEMI-POWERSHIFT, POWERSHIFT TRANSMISSION, RIGHT SIDE CONSOLE HARNESS, FUSE BOX, RELAY (55) - ELECTRICAL SYSTEMS

1

47512892

WIRE HARNESS

ASSY, Side Console, SPS/PS Transmission, Incl 2 - 23

1шт.

See Transmission Harness Components also in Figure 90.108.AE (10)

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

416569A1

DIODE ELEMENT,7300W

Bussmann 280

12шт.

4

121416A1

FUSE,30A, Mini, Green

5шт.

5

121414A1

FUSE,20A, Mini, Yellow

2шт.

6

121413A1

FUSE,15A, Mini, Blue

1шт.

7

121411A1

FUSE,7.5A, Mini, Brown

2шт.

8

84271717

RELAY,12V, 50A

2шт.

9

47553368

BRACKET

Fuse and Relay Mounting

1шт.

10

47537110

BRACKET

Side Console

1шт.

11

87655334

RELAY,12V, 35A, Micro

11шт.

12

84292399

KEY

12шт.

13

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

10шт.

14

87707841

CLIP,Hole DIA 6.35mm

1шт.

15

84386626

WIRE CONNECTOR

2шт.

16

NSS

NOT SOLD SEPARAT

Support, Incl in 23

5шт.

17

84404932

COVER

5шт.

18

84342278

CONNECTING BLOCK

30шт.

19

84292402

CABLE TIE,203mm L

4шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

21

121410A1

FUSE,5A, Mini, Tan

11шт.

22

121412A1

FUSE,10A, Mini, Red

7шт.

23

84380518

FUSE BOX

ASSY, Incl 16 (Qty 1), 17 (Qty 1), 18 (Qty 6)

5шт.
