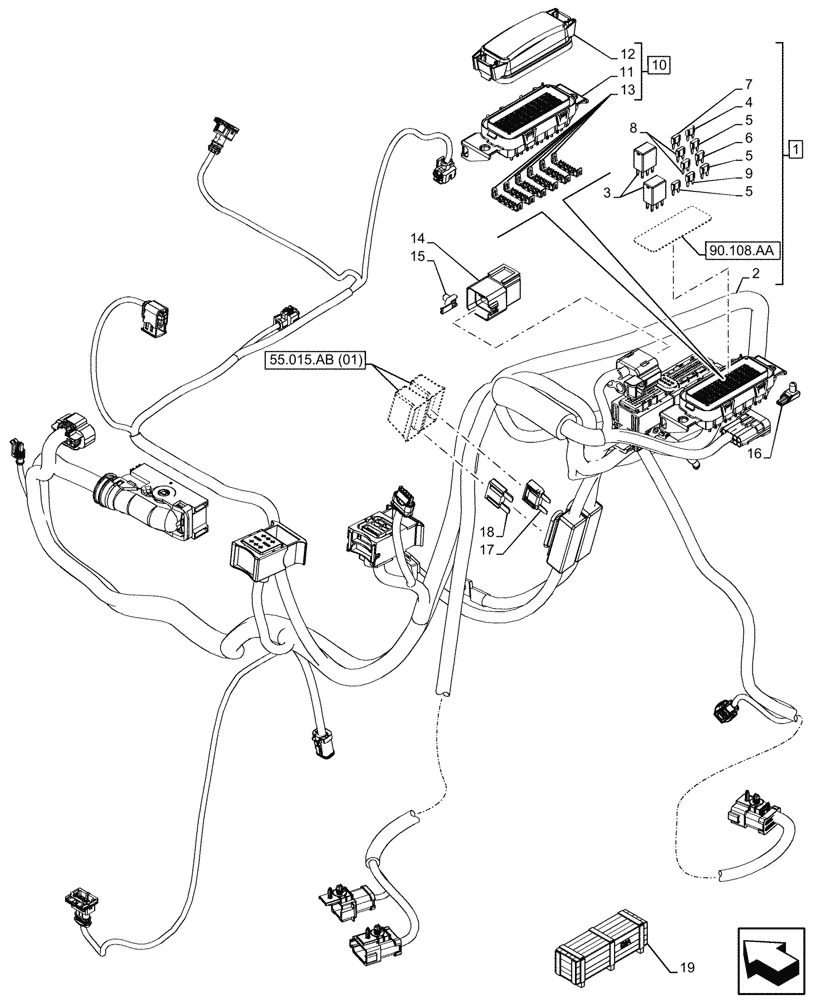

Запчасти Case 590SN (55.100.DO[01]) - ENGINE HARNESS, FUSE BOX, RELAY (55) - ELECTRICAL SYSTEMS

1

47714159

WIRE HARNESS

ASSY, Engine, Incl 2 - 13

1шт.

See Engine Harness Components also in Figure 90.108.AA

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

87655334

RELAY,12V, 35A, Micro

2шт.

4

121410A1

FUSE,5A, Mini, Tan

1шт.

5

121411A1

FUSE,7.5A, Mini, Brown

3шт.

6

121414A1

FUSE,20A, Mini, Yellow

1шт.

7

121413A1

FUSE,15A, Mini, Blue

1шт.

8

121412A1

FUSE,10A, Mini, Red

2шт.

9

121415A1

FUSE,25A, Mini, Clear

1шт.

10

84380518

FUSE BOX

ASSY, Incl 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Support, Incl in 10

1шт.

12

84404932

COVER

1шт.

13

84342278

CONNECTING BLOCK

6шт.

14

84271717

RELAY,12V, 50A

1шт.

15

84386626

WIRE CONNECTOR

1шт.

16

87707841

CLIP,Hole DIA 6.35mm

1шт.

17

84157159

FUSE,40A, Maxi, Orange

1шт.

18

84253577

FUSE,60A, Maxi, Blue

1шт.

19

47728597

CONSTRUCTION DIA

Auto Ride Control, Standard Transmission, Incl 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
