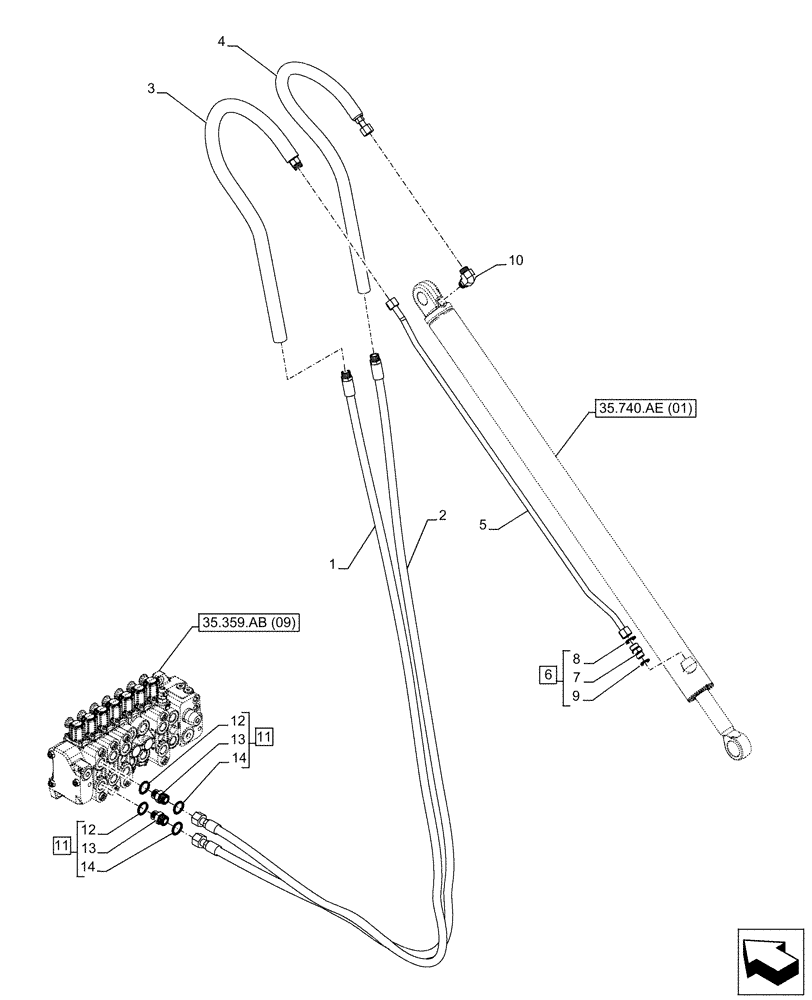

Запчасти Case 590SN (35.740.AC[02]) - VAR - 423076 - EXTENDABLE DIPPER, CYLINDER, LINE, SEVERE COLD WEATHER (35) - HYDRAULIC SYSTEMS

1

47831627

HYDRAULIC HOSE,16mm ID x 3122mm L

Valve to Backhoe - Cylinder Rod

1шт.

2

47831626

HYDRAULIC HOSE,16mm ID x 3114mm L

Valve to Backhoe - Cylinder Head

1шт.

3

47829695

HYDRAULIC HOSE,12.5mm ID x 845mm L

Backhoe Cylinder Rod

1шт.

4

47829696

HYDRAULIC HOSE,12.5mm ID x 840mm L

Backhoe Cylinder Head

1шт.

5

84295705

RIGID TUBE

ASSY, Backhoe Cylinder Rod, 1302mm L

1шт.

6

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

11

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

1шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
