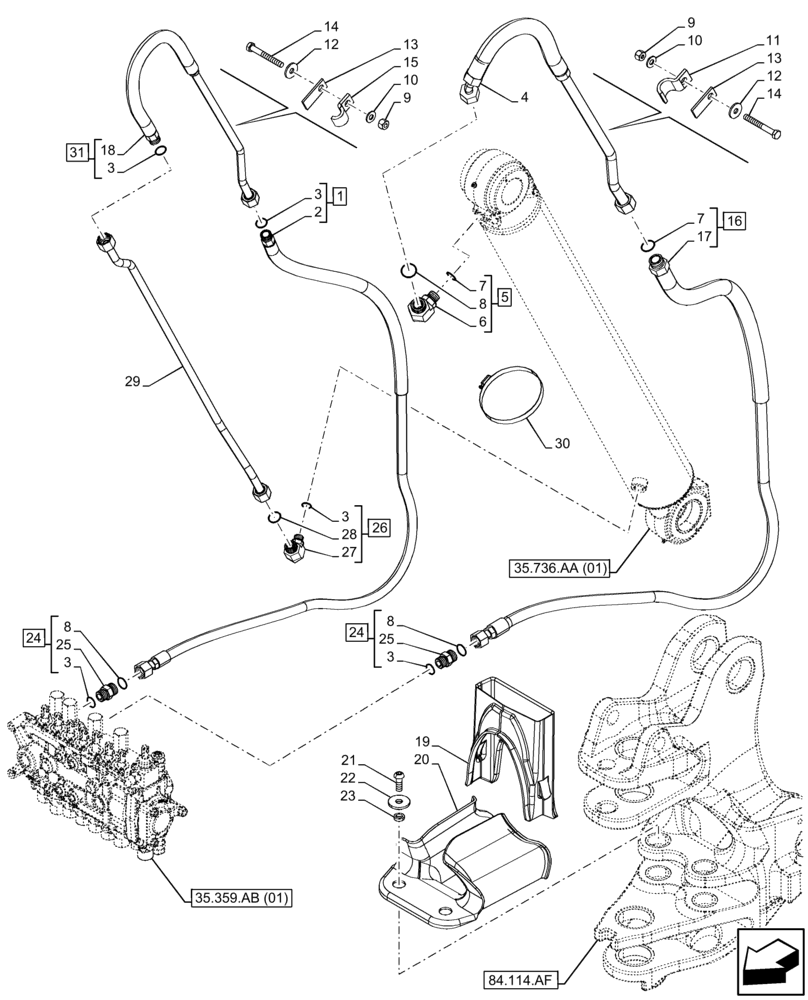

Запчасти Case 590SN (35.736.AC) - BACKHOE BOOM CYL. SECTION, LINE (35) - HYDRAULIC SYSTEMS

1

84263823

HYDRAULIC HOSE,16mm ID x 2247mm L

Valve to Boom, 2247mm, ASSY, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Hydraulic Hose, Incl in 1

1шт.

3

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

4

84276922

HYD TUBE

Boom Cylinder Head

1шт.

5

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

ASSY, incl 6 - 8 (Qty 1)

1шт.

6

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 5

1шт.

7

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

9

412141

NUT,M10 x 1.5, Cl 8

4шт.

10

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

11

242459A1

SHIN

2шт.

12

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

4шт.

13

84259030

SPACER

4шт.

14

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

4шт.

15

84367726

CLAMP,3/4" Clamping tube

2шт.

16

84281986

HYDRAULIC HOSE,19mm ID x 2262mm L

Valve to Boom, 2262mm, ASSY, Incl 7, 17

1шт.

17

NSS

NOT SOLD SEPARAT

Hydraulic Hose, Incl in 16

1шт.

18

NSS

NOT SOLD SEPARAT

Hydraulic Hose, Incl in 31

1шт.

19

84574630

GUARD

1шт.

20

84303525

GUARD

1шт.

21

84299393

HEX SOC SCREW,Hex Socket Button Head, M12 x 1.75 x 35mm, Cl. 10.9

2шт.

22

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.

23

84286039

SPACER,13.87mm ID x 21.34mm OD x 5.4mm Thk

2шт.

24

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 3 (Qty 1), 8 (Qty 1), 25 (Qty 1)

2шт.

25

NSS

NOT SOLD SEPARAT

Connector, Incl in 24

2шт.

26

87656136

HYD CONNECTOR

ASSY, Incl 3 (Qty 1), 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 26

1шт.

28

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

84276920

HYD TUBE

Boom Cylinder Rod, 1018.7mm

1шт.

30

214-31112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm

2шт.

31

84276924

HYD TUBE

Boom Cylinder Rod, ASSY, Incl 3 (Qty 1), 18

1шт.
