(35.734.AD[05]) - QUICK COUPLER, VALVE, HYDRAULIC LINE, EXTENDABLE DIPPER

Запчасти Case 590SN (35.734.AD[05]) - QUICK COUPLER, VALVE, HYDRAULIC LINE, EXTENDABLE DIPPER (35) - HYDRAULIC SYSTEMS

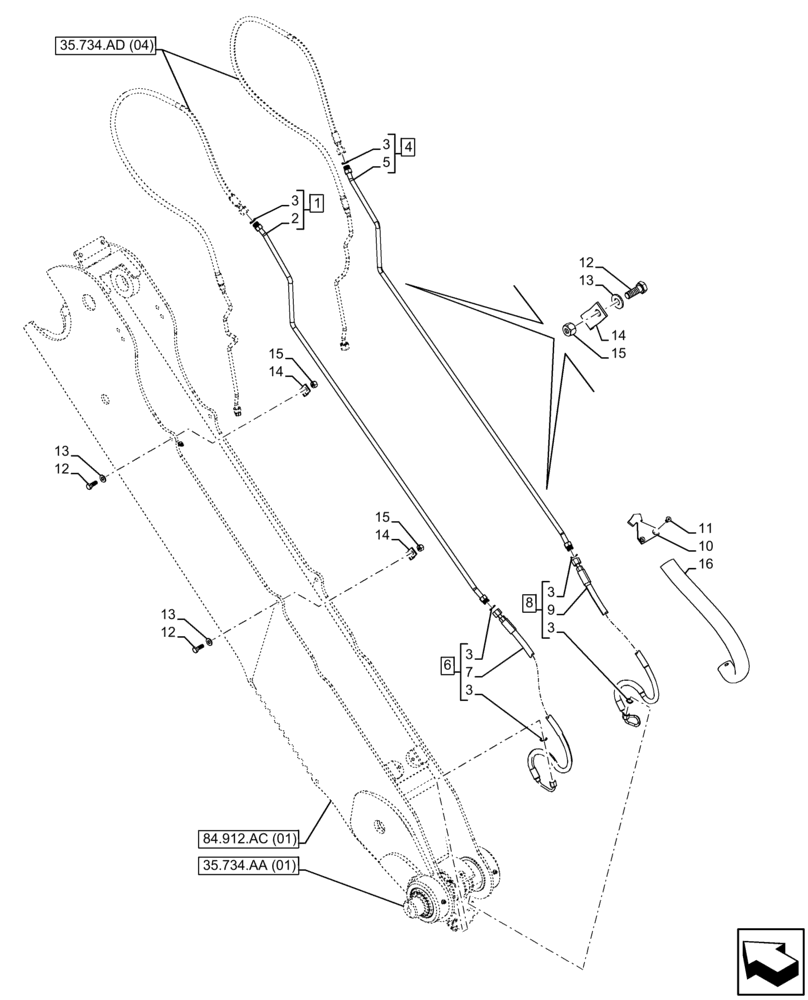

Схема запчастей Case 590SN - (35.734.AD[05]) - QUICK COUPLER, VALVE, HYDRAULIC LINE, EXTENDABLE DIPPER (35) - HYDRAULIC SYSTEMS
6
3
7
84.912.ac (01)
15
4
3
13
1
12
2
12
9
8
3
15
3
35.734.ad (04)
14
15
16
14
11
14
3
13
12
35.734.aa (01)
5
3
13
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84263543

HYD TUBE

ASSY, Standard Dipper RH, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

4

84263539

HYD TUBE

ASSY, Standard Dipper LH, Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Tube, Incl in 4

1шт.

6

84338027

HYD TUBE

6.3mm ID x 1183mm L, ASSY, Dipper to Coupler RH, Incl 3 (Qty 2), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Tube, Incl in 6

1шт.

8

84338030

HYD TUBE

6.3mm ID x 1208mm L, ASSY, Dipper to Coupler LH, Incl 3 (Qty 2), 9

1шт.

9

NSS

NOT SOLD SEPARAT

Tube, Incl in 8

1шт.

10

87418551

CLAMP

1шт.

11

407975A1

HEX SOC SCREW,FLAT, M8 x 1.25 x 12mm, Cl 10.9

2шт.

12

935388

BOLT,Hex, M10 x 28mm, Cl 8.8, Full Thd

4шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

14

84261209

CLAMP,1/2" clamping pipes

4шт.

15

412141

NUT,M10 x 1.5, Cl 8

4шт.

16

84355976

PROTECTIVE SLEEVE,56mm ID x 590mm L

1шт.
