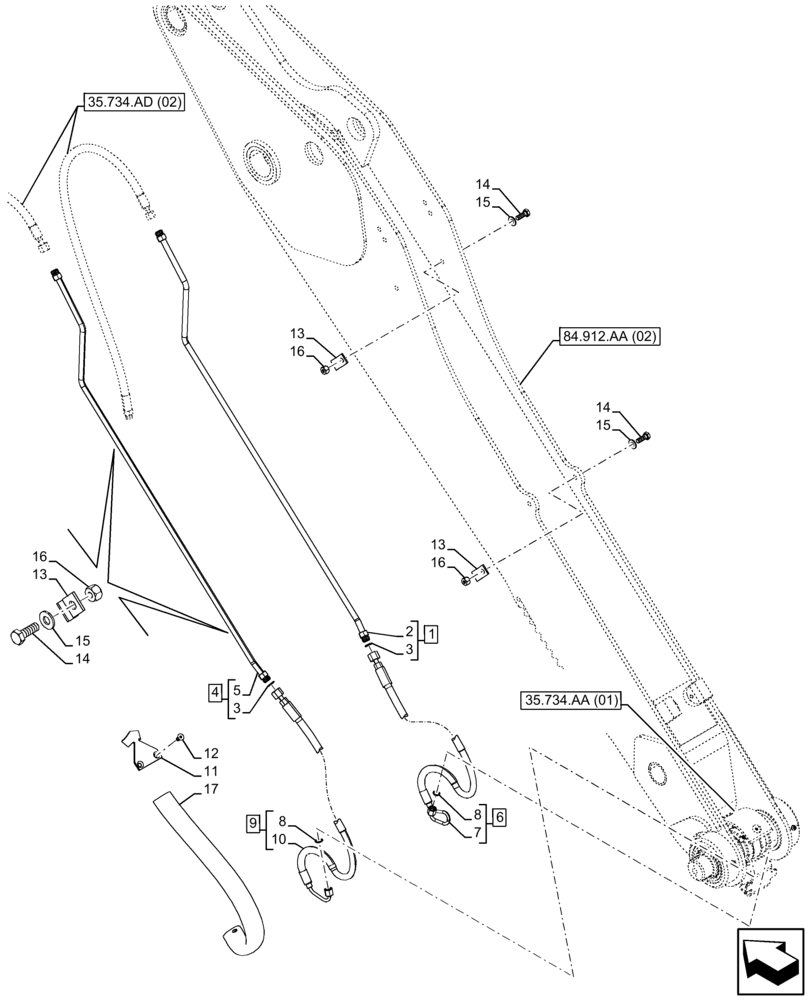

Запчасти Case 590SN (35.734.AD[03]) - QUICK COUPLER, VALVE, HYDRAULIC LINE, STANDARD DIPPER (35) - HYDRAULIC SYSTEMS

1

84263539

HYD TUBE

ASSY, Coupler Standard Dipper LH, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

84343139

HYD TUBE

ASSY, Coupler Standard Dipper RH, Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Tube, Incl in 4

1шт.

6

84338030

HYD TUBE

6.3mm ID x 1208mm L, ASSY, Dipper to Coupler LH, Incl 7, 8 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

Tube, Incl in 6

1шт.

8

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

9

84338027

HYD TUBE

6.3mm ID x 1183mm L, ASSY, Dipper to Coupler RH, Incl 8 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

Tube, Incl in 9

1шт.

11

87418551

CLAMP

1шт.

12

407975A1

HEX SOC SCREW,FLAT, M8 x 1.25 x 12mm, Cl 10.9

2шт.

13

84261209

CLAMP,1/2" clamping pipes

4шт.

14

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

15

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

16

412141

NUT,M10 x 1.5, Cl 8

4шт.

17

84355976

PROTECTIVE SLEEVE,56mm ID x 590mm L

1шт.
