(35.726.AU[06]) - EXTENDABLE DIPPER, AUXILIARY HYDRAULIC, SEVERE COLD WEATHER

Запчасти Case 590SN (35.726.AU[06]) - EXTENDABLE DIPPER, AUXILIARY HYDRAULIC, SEVERE COLD WEATHER (35) - HYDRAULIC SYSTEMS

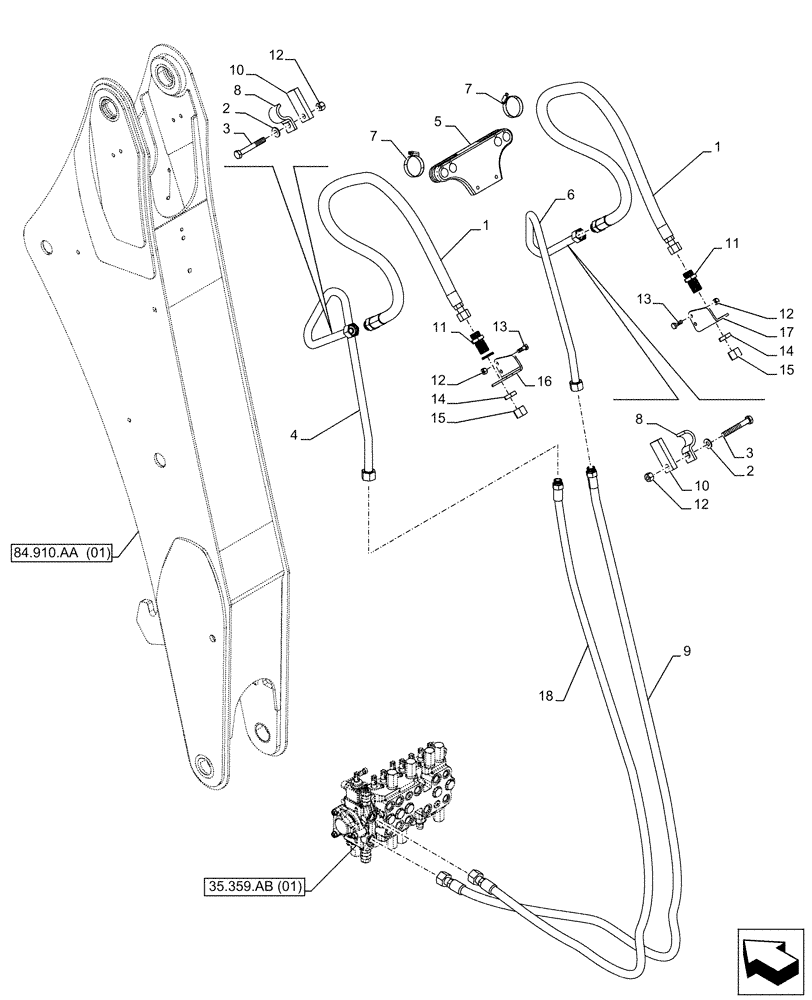

Схема запчастей Case 590SN - (35.726.AU[06]) - EXTENDABLE DIPPER, AUXILIARY HYDRAULIC, SEVERE COLD WEATHER (35) - HYDRAULIC SYSTEMS
84.910.aa (01)
14
12
13
18
6
1
8
3
2
13
15
9
11
10
7
7
4
5
10
12
11
17
15
2
12
1
8
3
14
16
12
35.359.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47810606

HYDRAULIC HOSE,19.05mm ID x 2030mm L

19.05mm ID x 2030mm L, SAE 100R16 Valve to Boom

2шт.

For Severe Cold Weather

1шт.

2

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

3

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

4

84343059

TUBE

Auxiliary LH

1шт.

5

84359766

SUPPORT

1шт.

6

84343077

TUBE

Auxiliary RH

1шт.

7

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

2шт.

8

242459A1

SHIN

2шт.

9

47810600

HYDRAULIC HOSE,19.05mm ID x 2795mm L

19.05mm ID x 2795mm L, SAE 100R16 ASSY, Valve to Boom Port B

1шт.

For Severe Cold Weather

1шт.

10

84299978

PLATE

2шт.

11

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

2шт.

12

412141

NUT,M10 x 1.5, Cl 8

6шт.

13

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

14

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

15

201-907

CAP,1-3/16" - 12 ORFS

2шт.

16

84305006

BRACKET

LH

1шт.

17

84305054

BRACKET

RH

1шт.

18

47810616

HYDRAULIC HOSE,19.05mm ID x 2800mm L

19.05mm ID x 2800mm L, SAE 100R16 ASSY, Valve to Boom Port A

1шт.

For Severe Cold Weather

1шт.
