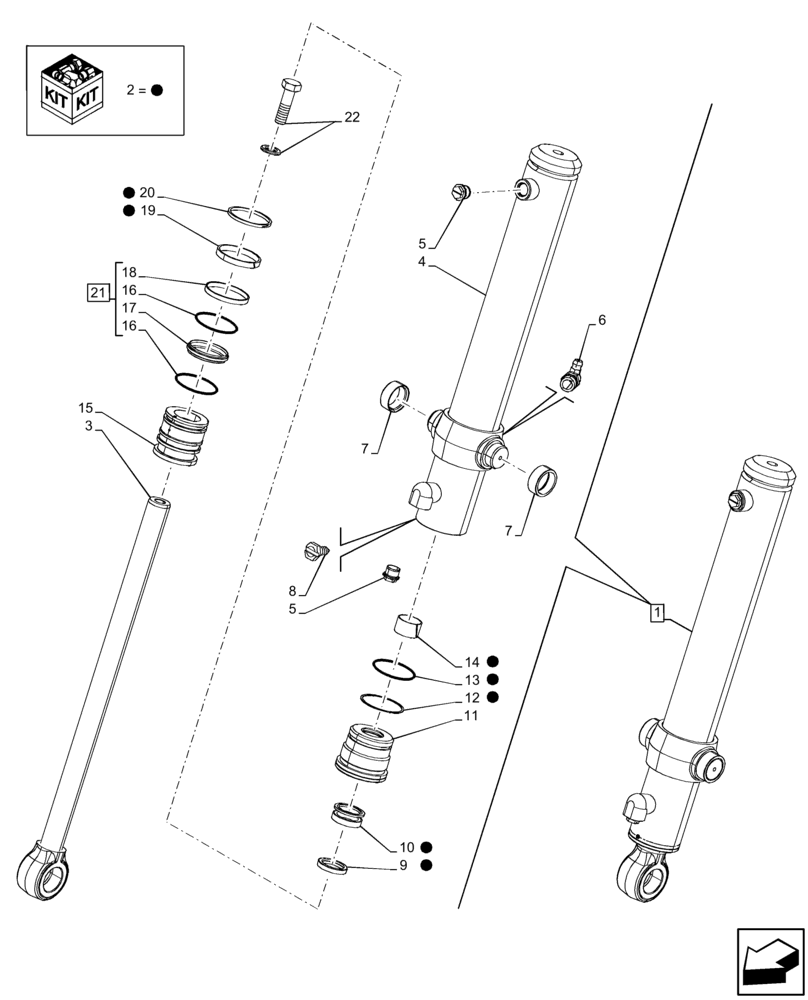

Запчасти Case 590SN (35.723.AA[02]) - LOADER BUCKET, CONTROL, CYLINDER (35) - HYDRAULIC SYSTEMS

1

84421602

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 516.5mm Stroke

ASSY, Incl 2 - 22

2шт.

2

84257323

SEAL KIT,44.4mm Rod x 82.6mm Bore

ASSY, Incl 9, 10, 12, 13, 14, 19, 20

1шт.

3

84208508

ROD,44.5mm OD x 727mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Cylinder, Incl in 1

2шт.

5

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

2шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

7

84203437

BUSHING,44.94mm ID x 55.07mm OD x 20.25mm L

2шт.

8

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

9

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

2шт.

10

1542875C1

SEAL KIT,44.4mm Rod

2шт.

11

84208516

GLAND

1шт.

12

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

2шт.

13

238-5233

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

2шт.

14

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

2шт.

15

84208518

PISTON ROD/GLAND,82.07mm Bore, 44.55mm Rod, 75.95mm W

1шт.

16

NSS

NOT SOLD SEPARAT

Seal, Incl in 21

2шт.

17

NSS

NOT SOLD SEPARAT

Ring, Incl in 21

2шт.

18

NSS

NOT SOLD SEPARAT

Seal, Incl in 21

2шт.

19

S109445

RING,82.55mm OD, Ext

1шт.

20

192330A1

SEALING RING,75.3mm ID x 82.5mm OD x 4.7mm Thk

1шт.

21

87715782

SEAL,82.6mm OD

ASSY, Incl 16 (Qty 2), 17 (Qty1), 18 (Qty 1)

2шт.

22

86982438

SPECIAL BOLT,Hex, 14, 1 x 3"

1шт.
