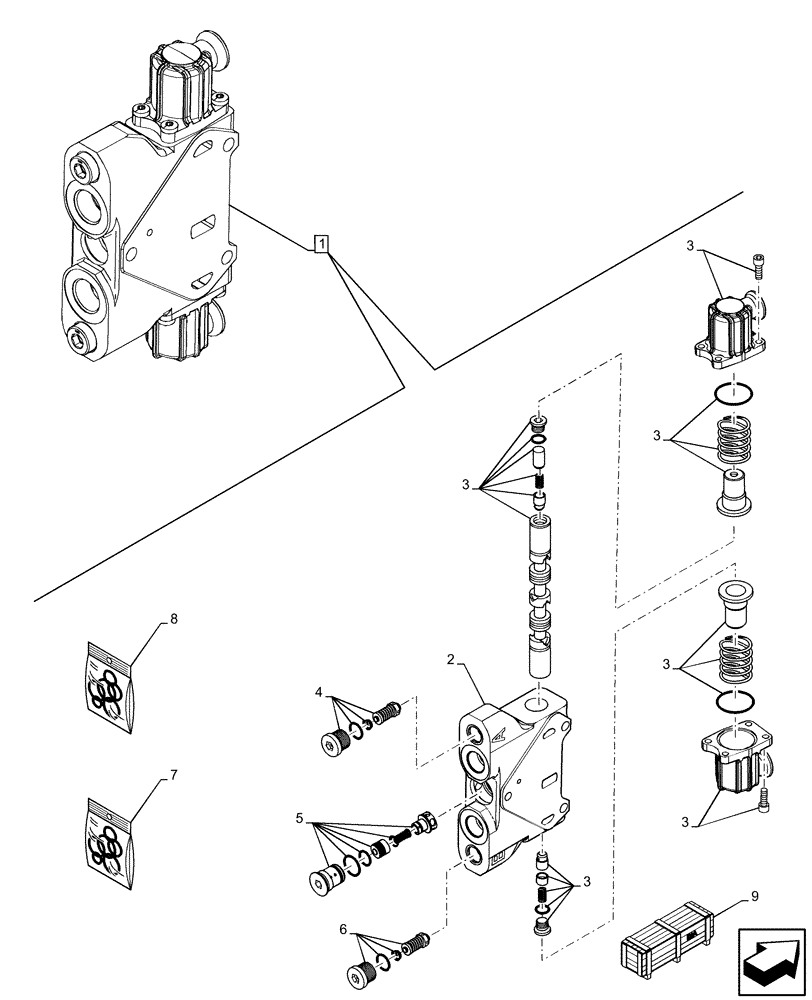

Запчасти Case 590SN (35.359.AB[19]) - BACKHOE CONTROL VALVE, BOOM SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84278714

HYD VALVE SECTION

Boom, ASSY, Incl 2 - 8

1шт.

1

84278714R

REMAN-HYD VALVE

Reman Boom, ASSY, Incl 2 - 8

1шт.

1

84278714C

CORE-VALVE HYD

Core Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

85826344

KIT,Operation

1шт.

4

84295045

VALVE PRESSURE RELIE,340 Bar

340 bar

1шт.

5

47422242

COMPENSATOR

1шт.

6

84295048

VALVE PRESSURE RELIE,230 Bar

230 bar

1шт.

7

87617657

O-RING KIT

1шт.

8

85825473

SEAL KIT

1шт.

9

47593980

CONSTRUCTION DIA

Dipper Oscillation, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
