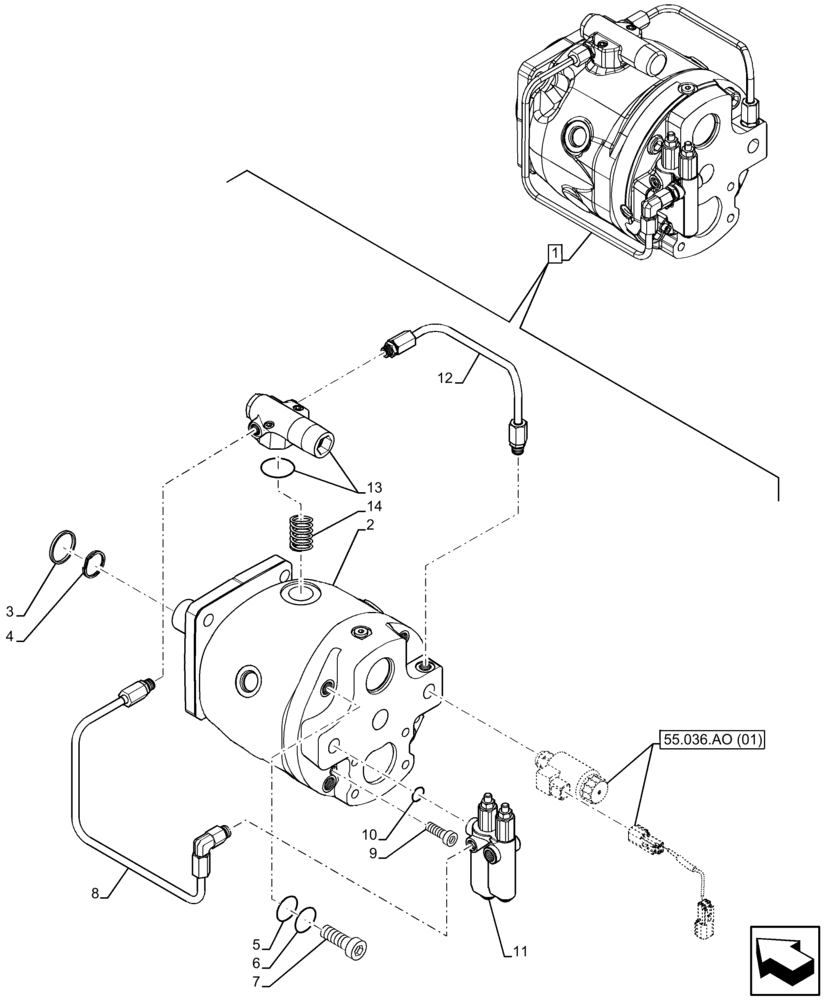

Запчасти Case 590SN (35.106.AD[02]) - VARIABLE DISPLACEMENT HYDRAULIC PUMP (W/ POWER LIFT, W/O DUAL BATTERIES), COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84218971

HYDRAULIC PUMP,74 CC

ASSY, Incl 2 - 14

1шт.

74cc, Load Sense (LS)

1шт.

See Hydraulic Pump Components also in Figure 55.036.AO (01)

1шт.

1

84218971R

REMAN-HYD PUMP

74cc, Load Sense (LS)

1шт.

1

84218971C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

84312204

SEALING RING

2шт.

4

84312221

RING

1шт.

5

84312210

O-RING

1шт.

6

84312220

O-RING

4шт.

7

84312223

HEX SOC SCREW

4шт.

8

84499590

SERVICE KIT

Control Tube, Long

1шт.

9

84312301

HEX SOC SCREW

4шт.

10

84312299

GASKET

1шт.

11

84311934

CONTROL VALVE

1шт.

12

84499592

SERVICE KIT

Control Tube, Short

1шт.

13

84311937

CONTROL VALVE

1шт.

14

47822289

SPRING KIT

Torque Control, 74CC

1шт.
