(25.108.AA[02]) - FRONT AXLE, SHAFT, 4WD

Запчасти Case 590SN (25.108.AA[02]) - FRONT AXLE, SHAFT, 4WD (25) - FRONT AXLE SYSTEM

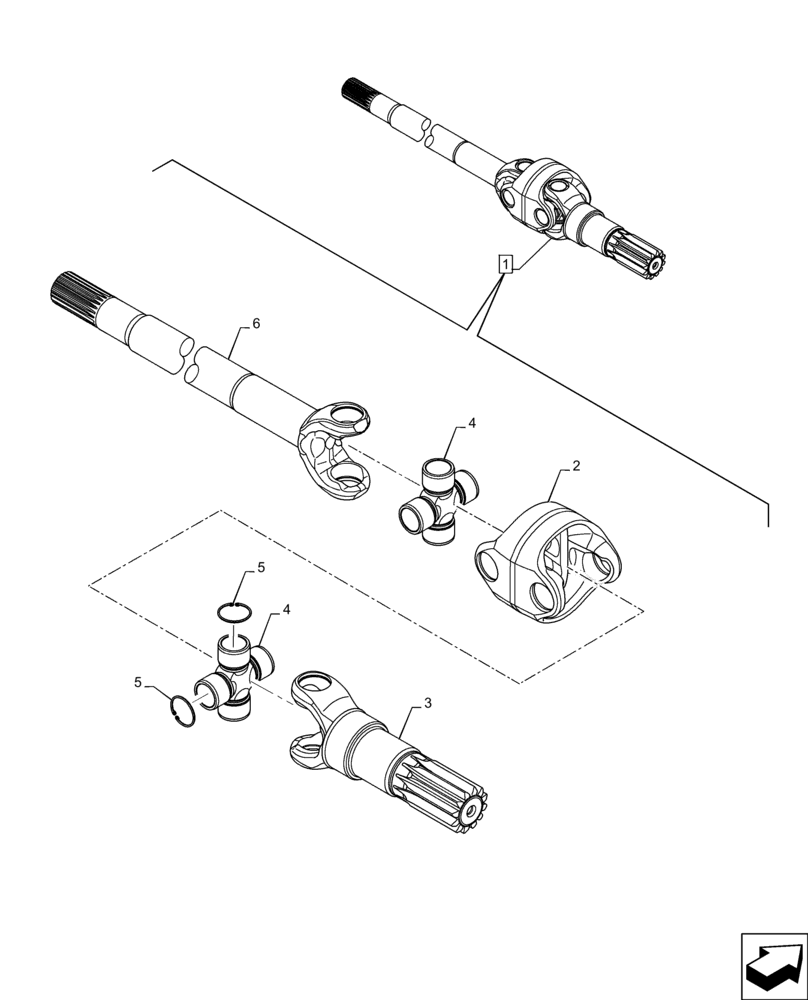

Схема запчастей Case 590SN - (25.108.AA[02]) - FRONT AXLE, SHAFT, 4WD (25) - FRONT AXLE SYSTEM
2
4
5
6
5
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84316954

AXLE-SHAFT, ARTICULA,1023.5mm L

ASSY, Incl 2 - 6

2шт.

2

84258437

YOKE

Front Axle

1шт.

3

84316955

HALF SHAFT,225mm L, 12T

Front Axle

1шт.

4

84258439

U-JOINT SPIDER

Journal and Bearing

2шт.

5

301644

CIRCLIP,M30, Int

Circlip

8шт.

6

84258436

HALF SHAFT,726mm L, 22T

Front Axle

1шт.
