(23.314.AH[03]) - VAR - 745136 - FRONT, DRIVE SHAFT, GUARD

Запчасти Case 590SN (23.314.AH[03]) - VAR - 745136 - FRONT, DRIVE SHAFT, GUARD (23) - FOUR WHEEL DRIVE SYSTEM

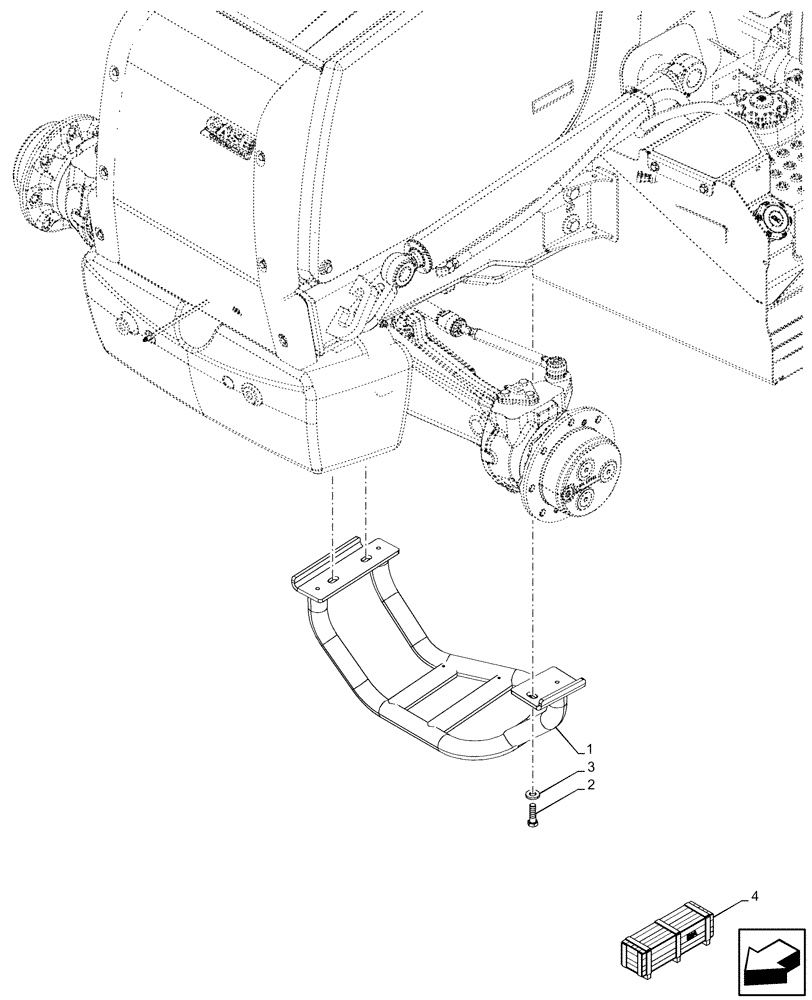

Схема запчастей Case 590SN - (23.314.AH[03]) - VAR - 745136 - FRONT, DRIVE SHAFT, GUARD (23) - FOUR WHEEL DRIVE SYSTEM
2
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47604689

GUARD

Driveshaft

1шт.

2

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

3шт.

3

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

3шт.

4

47654986

CONSTRUCTION DIA

4WD Guard, incl 1 - 3

1шт.

Valid for 580N EP, 580N Models Only

1шт.

Выбрано товаров: 5
