Запчасти Case 590SN (21.155.AN[05]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, INPUT SHAFT, 4WD (21) - TRANSMISSION

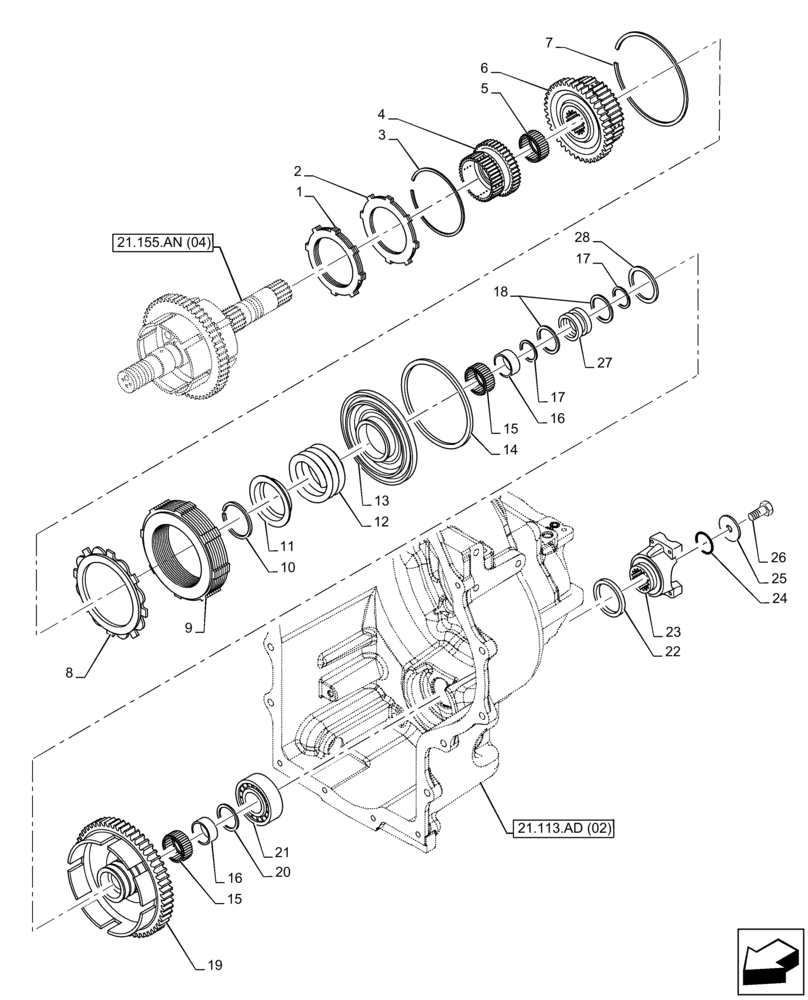

Схема запчастей Case 590SN - (21.155.AN[05]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, INPUT SHAFT, 4WD (21) - TRANSMISSION
17
5
28
3
19
2
11
25
7
6
8
16
17
16
21
24
9
20
27
21.155.an (04)
22
10
1
13
14
15
12
23
21.113.ad (02)
15
18
26
4

Артикул

Название

Примечание

Количество

1

87705479

CLUTCH OVERHAUL KIT

1шт.

2

310519A1

PLATE

1шт.

3

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

1шт.

4

87705480

GEAR,30T

Z=30

1шт.

5

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

1шт.

6

87705481

GEAR,51T

Z=51

1шт.

7

87705482

CIRCLIP,204.5mm OD x 3mm Thk

1шт.

8

87705483

CIRCLIP

1шт.

9

87705492

CLUTCH OVERHAUL KIT

1шт.

10

87705493

CIRCLIP,72.4mm ID x 2mm Thk

1шт.

11

87705494

COVER

1шт.

12

87705501

SPRING

1шт.

13

87705502

PISTON

1шт.

14

87705503

SEALING RING

1шт.

15

87705515

NEEDLE BEARING,50mm ID x 55mm OD x 20mm W

2шт.

16

87705516

BUSHING,45mm ID x 50mm OD x 20.5mm L

2шт.

17

87705517

O-RING

2шт.

18

87705518

SEALING RING

2шт.

19

87705521

GEAR,60T

Z=60

1шт.

20

87705522

WASHER

1шт.

21

87705469

BALL BEARING,45 mm ID x 100 mm OD x 25 mm

1шт.

22

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

1шт.

23

87705524

FLANGE

1шт.

24

181144A1

O-RING,39.6mm ID x 3.53mm Width

1шт.

25

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

1шт.

26

P3533055

SCREW,M12 x 1.25 x 25mm

1шт.

27

87705519

SPACER

1шт.

28

87705520

SEAL KIT

1шт.

Выбрано товаров: 28
