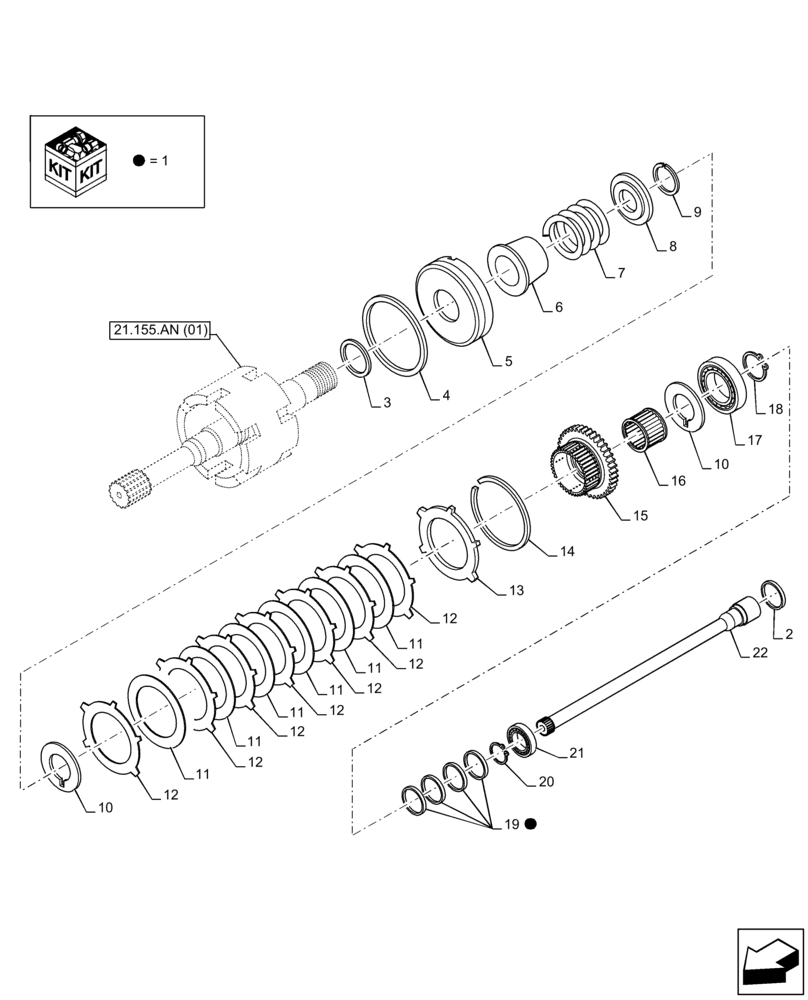

Запчасти Case 590SN (21.155.AN[02]) - VAR - 423062 - TRANSMISSION, POWERSHIFT, INPUT SHAFT, 4WD (21) - TRANSMISSION

1

87525849

REPAIR KIT

Incl, 19

1шт.

2

358645A1

SEALING RING

1шт.

3

358642A1

SEALING RING

1шт.

4

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

1шт.

5

358644A1

PISTON

1шт.

6

358641A1

TRANSMISSION SLEEVE

1шт.

7

358637A1

SPRING

1шт.

8

181161A1

PLATE, THRUST

1шт.

9

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

1шт.

10

358640A1

WASHER

2шт.

11

181158A1

CLUTCH DISC

6шт.

12

181159A1

DISC

7шт.

13

310519A1

PLATE

1шт.

14

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

1шт.

15

87705459

GEAR,37T

Forward, Z=37

1шт.

16

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

1шт.

17

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

1шт.

18

800-1150

SNAP RING,M50, Ext

1шт.

19

87429984

RING

4шт.

20

800-1130

SNAP RING,M30, Ext

1шт.

21

87429983

BALL BEARING,30mm ID x 55mm OD x 13mm W

1шт.

22

87705460

PTO SHAFT

1шт.
