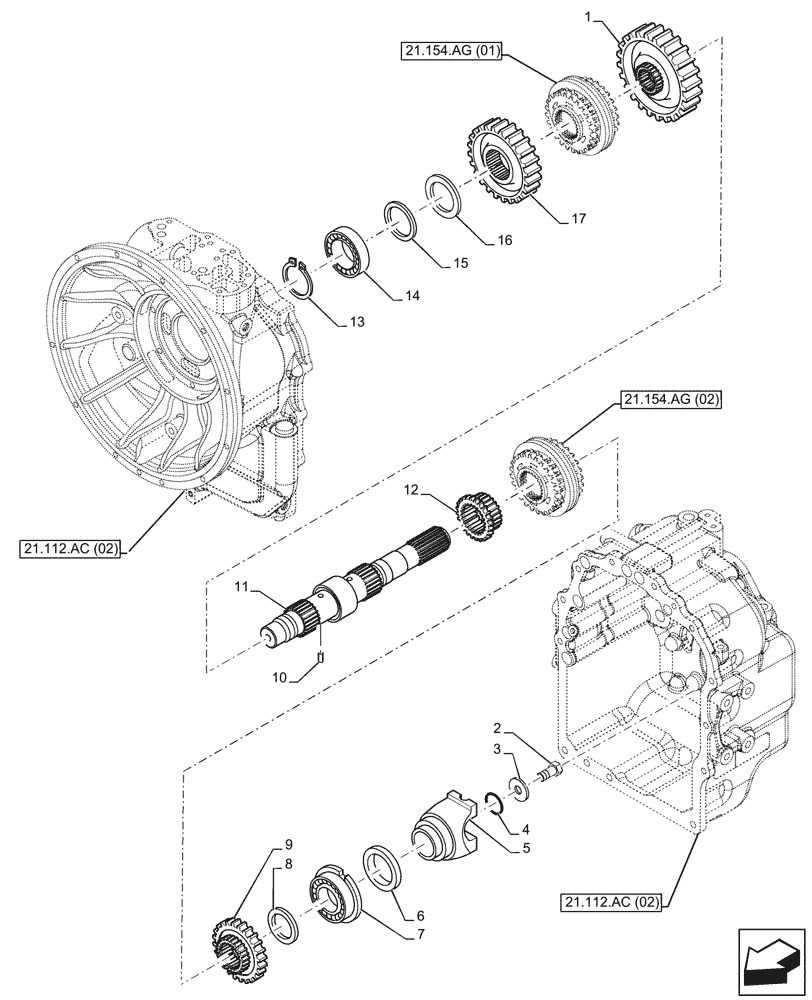

Запчасти Case 590SN (21.154.AJ[05]) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, DRIVE SHAFT, DRIVEN SHAFT, 2WD (21) - TRANSMISSION

1

87701293

GEAR,50T

1st Speed

1шт.

2

P3533055

SCREW,M12 x 1.25 x 25mm

1шт.

3

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

1шт.

4

181144A1

O-RING,39.6mm ID x 3.53mm Width

1шт.

5

233284A1

YOKE

1/2 Round Rear Drive Shaft

1шт.

6

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

1шт.

7

181130A1

BEARING, BALL,45 mm ID x 106.5 mm OD x 25 mm

1шт.

8

358639A1

WASHER

1шт.

9

358283A1

DRIVEN GEAR,33T

3rd Speed

1шт.

10

181108A1

SPLIT PIN,3mm OD x 8mm L

1шт.

11

87701294

SHAFT

Secondary (Rear Output Shaft)

1шт.

12

358282A1

GEAR,23T

4th Speed

1шт.

13

181118A1

RING, LOCKING,36.5mm ID x 1.75mm Thk

1шт.

14

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

15

358650A1

SHIM,0.05mm Thk

1шт.

15

358651A1

SHIM,0.1mm Thk

1шт.

15

358652A1

SHIM,0.3mm Thk

1шт.

15

196454A1

SHIM,0.5mm Thk

1шт.

16

358649A1

THRUST WASHER

1шт.

17

87701278

GEAR,44T

2nd Speed

1шт.
