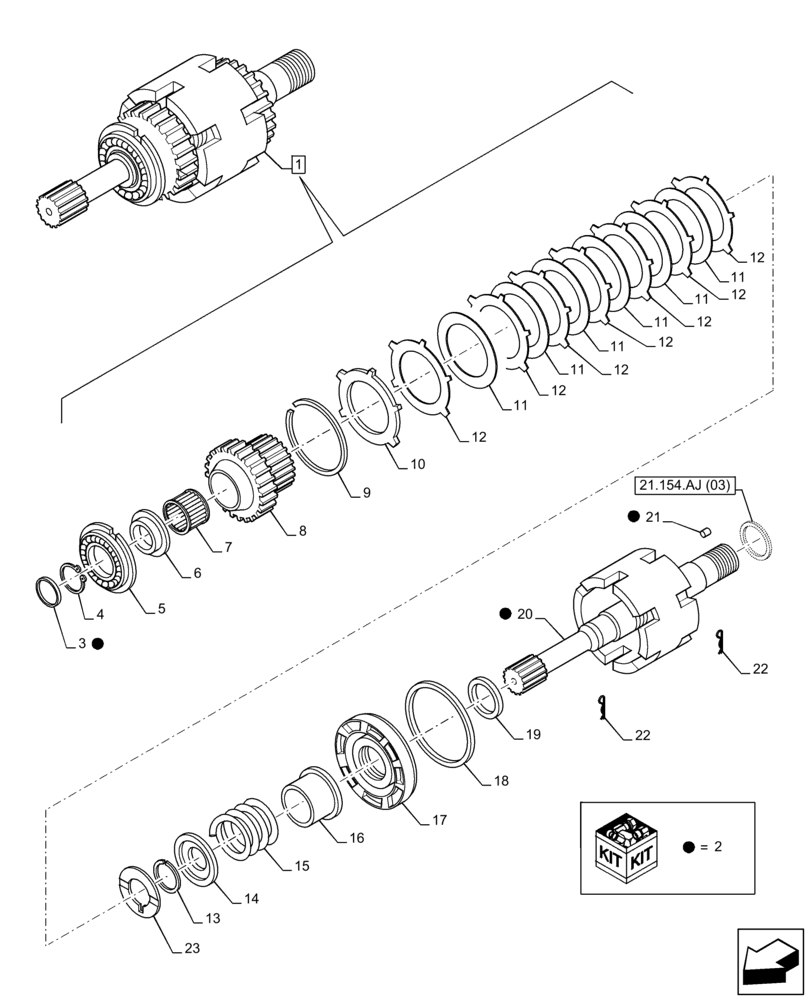

Запчасти Case 590SN (21.154.AJ[02]) - VAR - 423058, 423059 - TRANSMISSION, POWERSHUTTLE, DRIVE SHAFT, COMPONENTS (21) - TRANSMISSION

1

84209035

SHAFT

Input/PTO Bom, ASSY, Incl 2 - 23

1шт.

See Input Shaft Components also in Figure 21.154.AJ (03)

1шт.

2

87525849

REPAIR KIT

Incl 3, 20, 21

1шт.

See Repair Kit Components also in Figure 21.154.AJ (03)

1шт.

3

358645A1

SEALING RING

1шт.

4

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

1шт.

5

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

6

358635A1

SPACER

1шт.

7

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

1шт.

8

358632A1

PINION,35T

Reverse

1шт.

9

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

1шт.

10

310519A1

PLATE

1шт.

11

181158A1

CLUTCH DISC

6шт.

12

181159A1

DISC

7шт.

13

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

1шт.

14

181161A1

PLATE, THRUST

1шт.

15

358637A1

SPRING

1шт.

16

358641A1

TRANSMISSION SLEEVE

1шт.

17

358644A1

PISTON

1шт.

18

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

1шт.

19

358642A1

SEALING RING

1шт.

20

87429973

SHAFT

Input

1шт.

21

139312A1

PLUG,Expansion, 6mm OD

Expansion 6mm

4шт.

22

181108A1

SPLIT PIN,3mm OD x 8mm L

2шт.

23

358640A1

WASHER

1шт.
