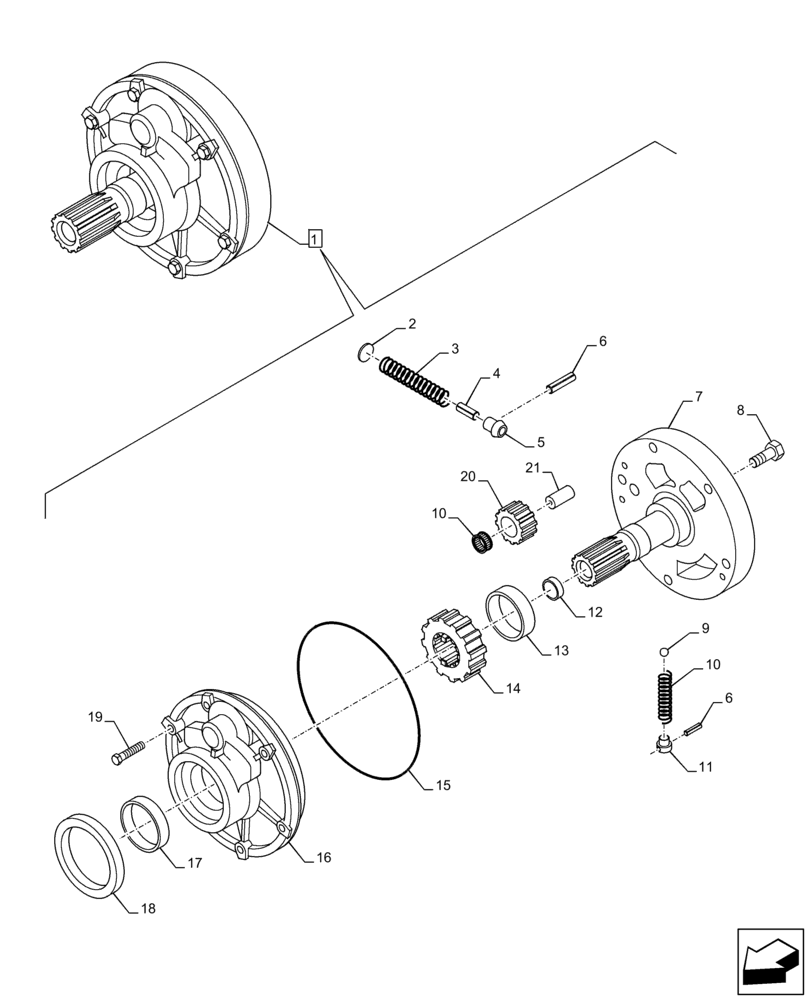

Запчасти Case 590SN (21.152.AN[02]) - VAR - 423060, 423061 - TRANSMISSION, SEMI-POWERSHIFT, OIL PUMP, COMPONENTS (21) - TRANSMISSION

1

87705431

HYDRAULIC PUMP

ASSY, Incl 2 - 21

1шт.

1

87705431R

REMAN-HYD PUMP

1шт.

1

87705431C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Cotter Pin, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Cotter Pin, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

15

181142A1

O-RING,2.5mm Thk x 183mm ID, 70 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

18

87429971

OIL SEAL

1шт.

19

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

9шт.

20

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.
