Запчасти Case 590SN (21.134.AH) - VAR - 423059 - TRANSMISSION, POWERSHUTTLE, CONTROL LEVER, 4WD (21) - TRANSMISSION

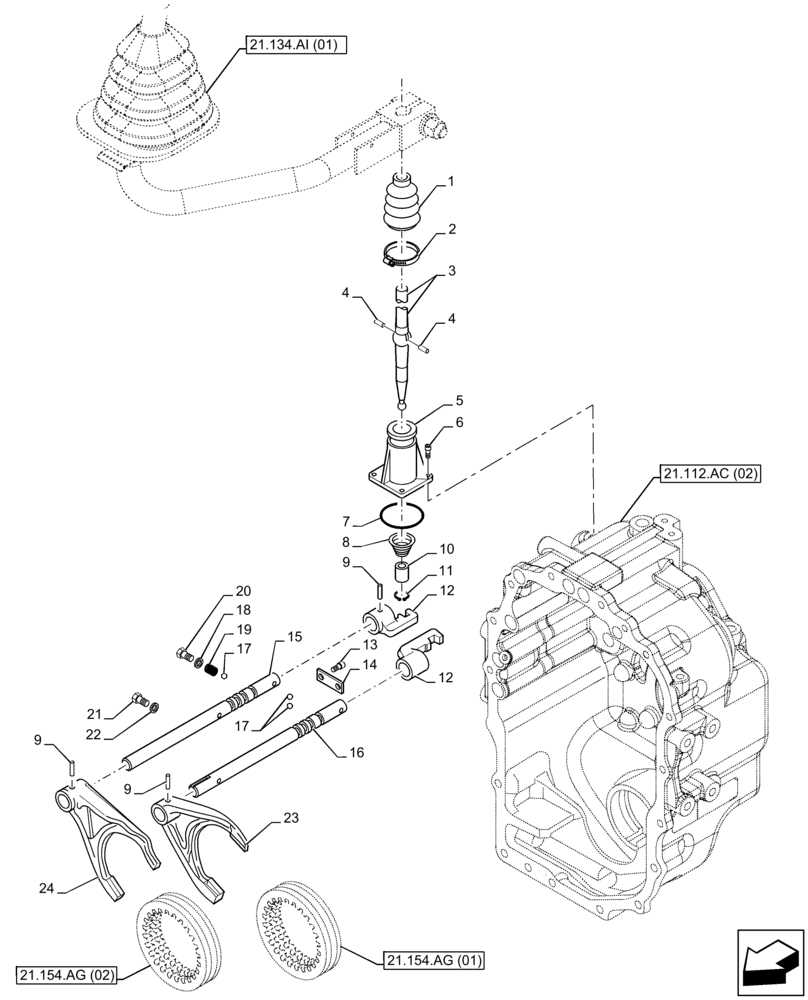

Схема запчастей Case 590SN - (21.134.AH) - VAR - 423059 - TRANSMISSION, POWERSHUTTLE, CONTROL LEVER, 4WD (21) - TRANSMISSION
21.134.ai (01)
20
21.112.ac (02)
9
11
24
17
18
14
1
23
3
13
21.154.ag (01)
4
12
8
21
2
12
4
7
15
19
17
9
21.154.ag (02)
16
9
10
6
5
22

Артикул

Название

Примечание

Количество

1

1967581C1

BOOT

1шт.

2

181177A1

CLAMP

1шт.

3

190428A3

LEVER

1шт.

4

1967585C1

PIN

2шт.

5

181171A1

COVER

1шт.

6

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

3шт.

7

181138A1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

1шт.

8

278533A1

SPRING

1шт.

9

905794R1

PIN,M6 x 30, Coiled

4шт.

10

278532A1

BUSHING

1шт.

11

279039A1

RING, SNAP

1шт.

12

181173A1

SELECTOR

2шт.

13

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

2шт.

14

181175A1

PLATE

1шт.

15

181245A2

SHIFT RAIL

3rd and 4th Speed

1шт.

16

87578867

SHIFT RAIL

1st and 2nd Speed

1шт.

17

181139A1

BALL,10mm OD

4шт.

18

87429994

SEALING WASHER,12mm ID x 20mm OD x 1.5mm Thk

2шт.

19

1966993C1

SPRING

2шт.

20

87701338

BOLT,M10 x 1.5 x 25 - 8.8

2шт.

21

181100A1

PLUG,1/8 CAS x 8

1шт.

22

87429985

SEALING WASHER,10mm ID x 18mm OD x 1.5mm Thk

1шт.

23

181203A1

SHIFTER FORK

1st and 2nd Speed

1шт.

24

181174A2

SHIFTER FORK

3rd and 4th Speed

1шт.

Выбрано товаров: 24
