Запчасти Case 590SN (21.112.AC[01]) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, 2WD (21) - TRANSMISSION

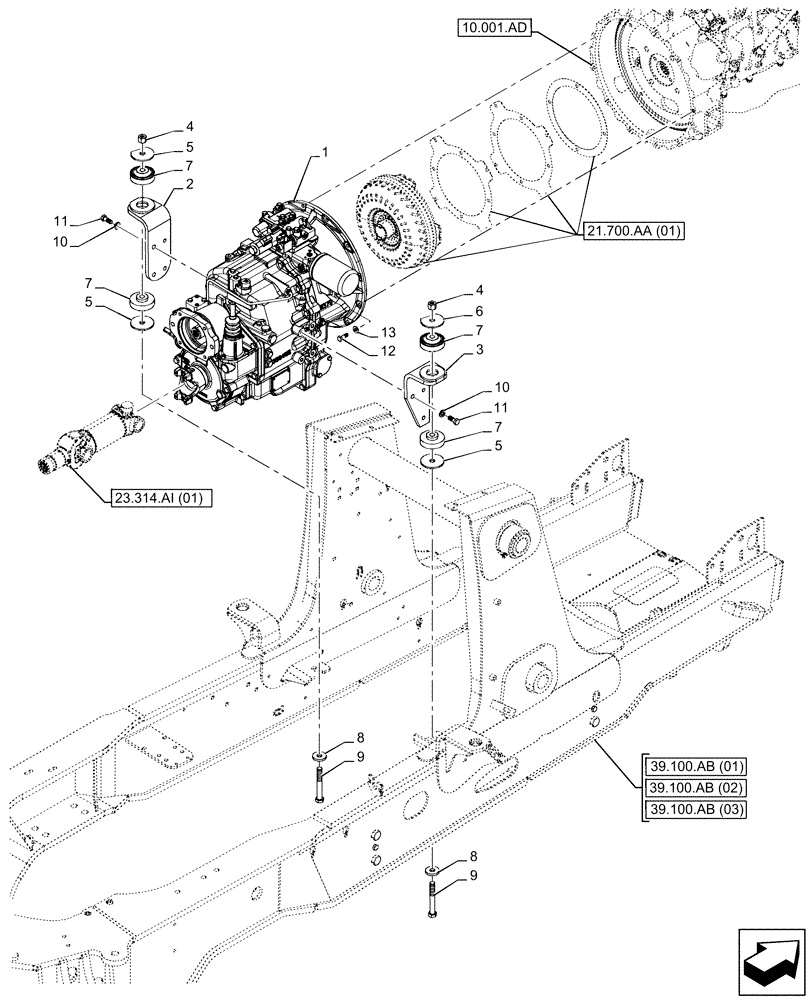

Схема запчастей Case 590SN - (21.112.AC[01]) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, 2WD (21) - TRANSMISSION
39.100.ab (02)
7
9
5
7
3
2
5
4
10
10
1
7
13
8
12
4
6
7
9
11
5
8
11
23.314.ai (01)
21.700.aa (01)
10.001.ad
39.100.ab (01)
39.100.ab (03)

Артикул

Название

Примечание

Количество

1

87395300

TRANSMISSION

TLB 1 Up with SAHR, ASSY

1шт.

1

87395300R

REMAN-TRANSMISSION

TLB 1 Up with SAHR, ASSY

1шт.

1

87395300C

CORE-TRANSMISSION

Return Number

1шт.

2

84567307

BRACKET

Transmission Mount LH

1шт.

3

84567310

BRACKET

Transmission Mount RH

1шт.

4

832-10416

NUT,M16 x 2, Cl 8

2шт.

5

47395221

WASHER,0.66" ID x 3" OD x 0.18" Thk

3шт.

6

47395114

WASHER,16.7mm ID x 76.2mm OD x 4.55m Thk, HTS

1шт.

7

84383342

MOUNT

55 Durometer

4шт.

8

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

2шт.

9

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

2шт.

10

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

7шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

7шт.

12

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

12шт.

Выбрано товаров: 15
