(21.103.AS) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, OIL LINE, INTERNAL, 4WD

Запчасти Case 590SN (21.103.AS) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, OIL LINE, INTERNAL, 4WD (21) - TRANSMISSION

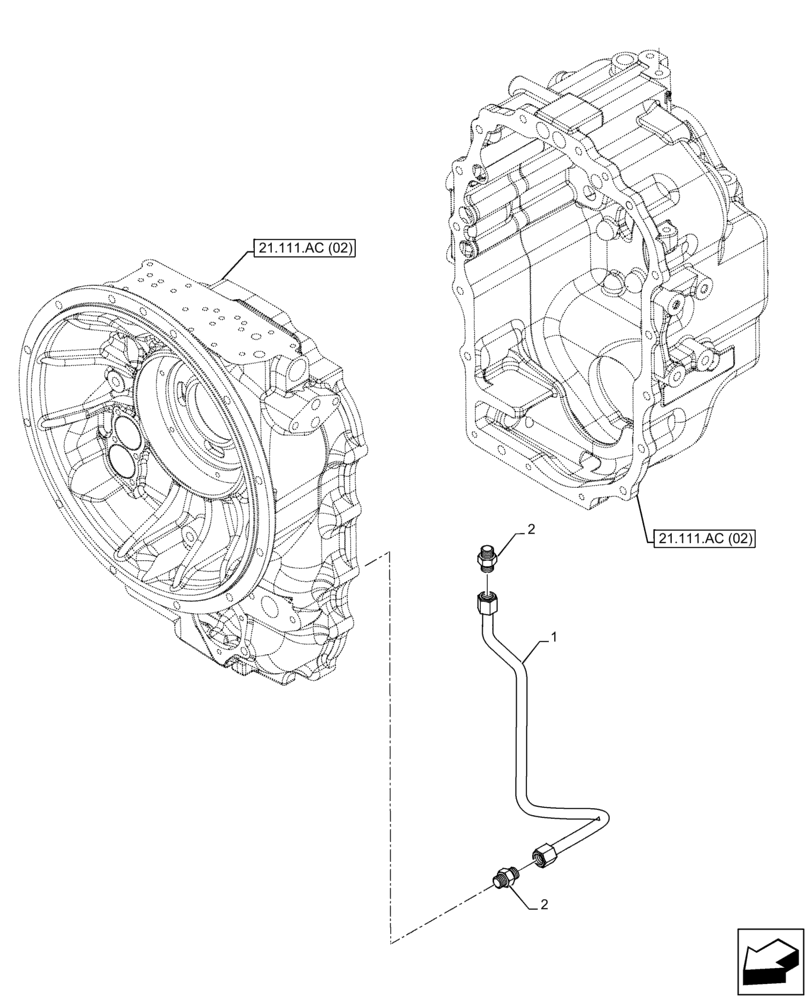

Схема запчастей Case 590SN - (21.103.AS) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, OIL LINE, INTERNAL, 4WD (21) - TRANSMISSION
1
21.111.ac (02)
2
21.111.ac (02)
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84336857

TUBE

Internal Oil Line

1шт.

2

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

2шт.

Выбрано товаров: 2
