Запчасти Case 590SN (21.103.AJ) - VAR - 423060, 423061 - TRANSMISSION, SEMI-POWERSHIFT, OIL FILTER (21) - TRANSMISSION

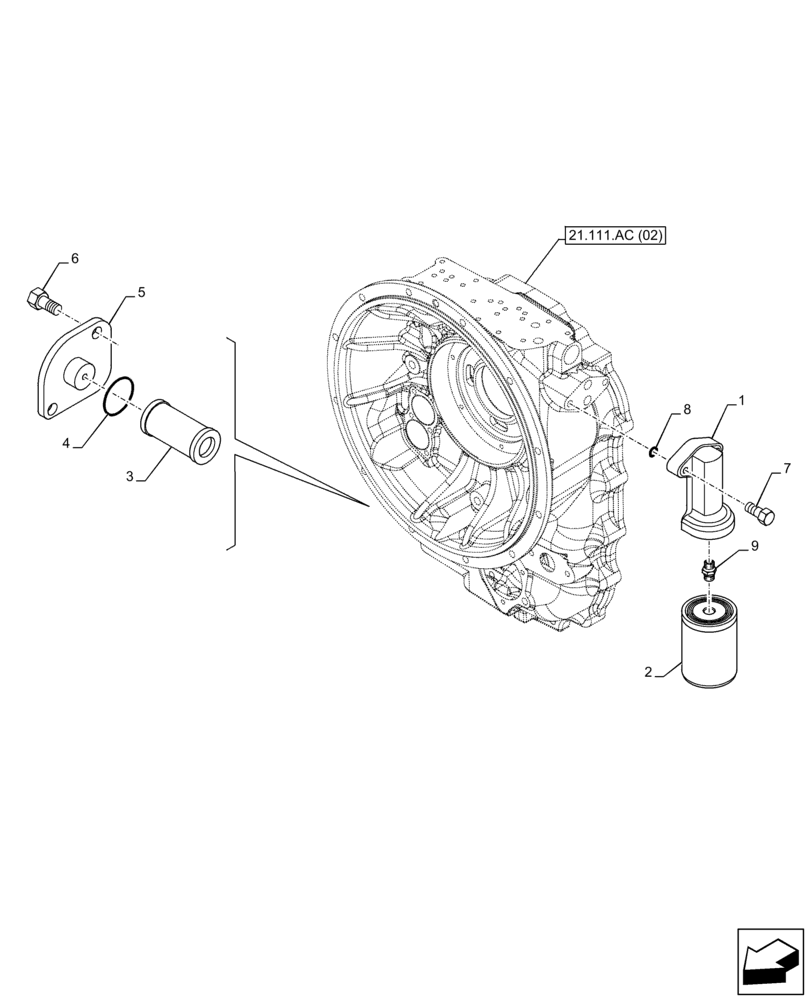

Схема запчастей Case 590SN - (21.103.AJ) - VAR - 423060, 423061 - TRANSMISSION, SEMI-POWERSHIFT, OIL FILTER (21) - TRANSMISSION
9
4
21.111.ac (02)
3
7
5
8
6
2
1

Артикул

Название

Примечание

Количество

1

84336851

FILTER HEAD

Support

1шт.

2

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Hydraulic Oil, Transmission

1шт.

3

278534A1

FILTER SCREEN

Transmission Oil / Suction

1шт.

4

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

1шт.

5

84301332

COVER

1шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

7

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

8

181141A1

O-RING,17.12mm ID x 2.62mm Width

2шт.

9

181202A1

FITTING

1шт.

Выбрано товаров: 9
