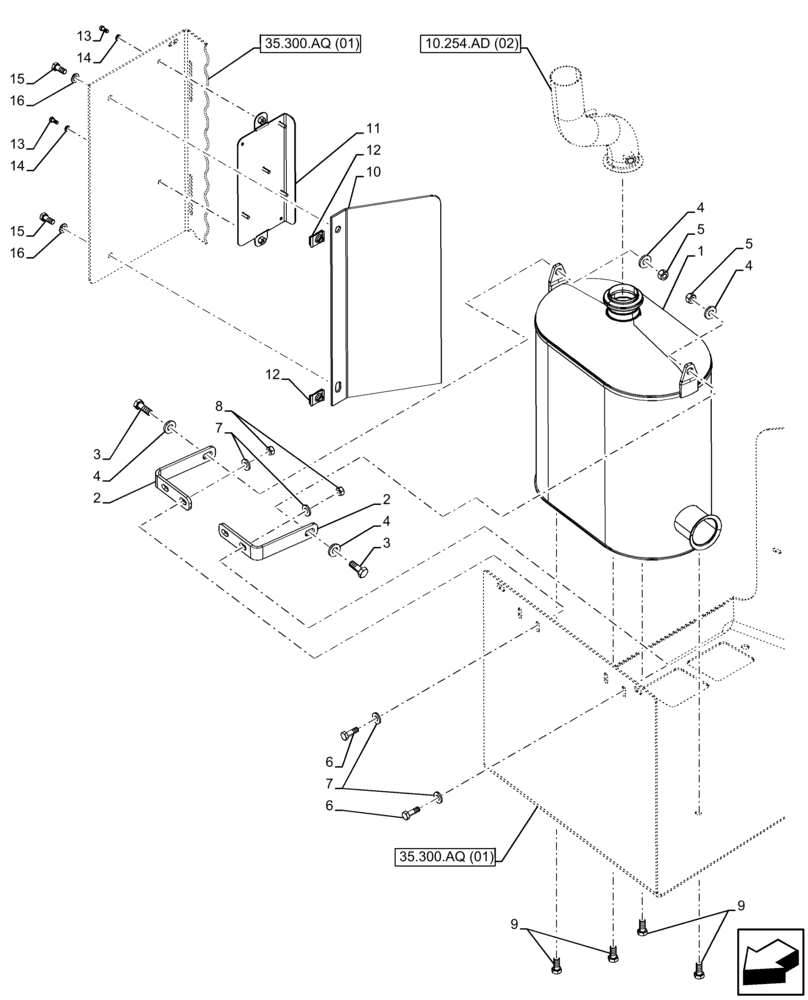

Запчасти Case 590SN (10.500.AS[02]) - SELECTIVE CATALYTIC REDUCTION, MUFFLER (10) - ENGINE

1

47524982

SPARK ARRESTER

SCR/CUC Muffler

1шт.

2

47610189

BRACKET

SCR Support

2шт.

3

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

5

829-1412

NUT,M12, Cl 10.9

2шт.

6

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

9

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

4шт.

10

47545678

PLATE

Thermal Shield

1шт.

11

47545682

SUPPORT

Module Mount

1шт.

12

87493302

SPRING NUT,M10

2шт.

13

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
