Запчасти Case 590SN (10.500.AG[01]) - DEF LINES (10) - ENGINE

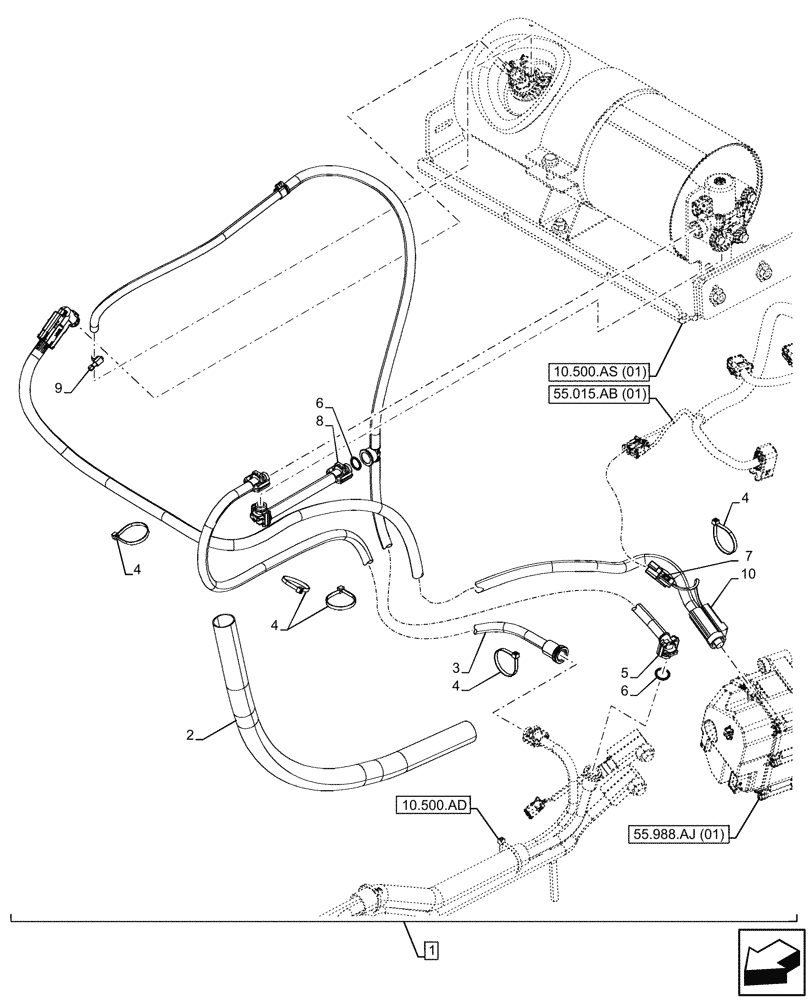

![Схема запчастей Case 590SN - (10.500.AG[01]) - DEF LINES (10) - ENGINE](https://partsell.ru/storage/images/casece/5282041.png)
10.500.ad
4
9
5
4
7
2
10
3
6
4
6
1
8
4
10.500.as (01)
55.015.ab (01)
55.988.aj (01)
№
Артикул
Название
Примечание
Количество
1
47710012
TUBE
DEF System Line, ASSY, Incl 2 - 10
1шт.
2
NSS
NOT SOLD SEPARAT
Coflex, Incl in 1
1шт.
3
NSS
NOT SOLD SEPARAT
Coolant Line, Valve to Chassis, Incl in 1
1шт.
4
L11541
CABLE TIE,203.2mm L, Nylon
12шт.
5
NSS
NOT SOLD SEPARAT
Coolant Line, Chassis to DOC, Incl in 1
1шт.
6
84206573
O-RING,2.5mm Thk x 12mm ID, -70
2шт.
7
87695567
ELEC CONNECTOR,Fem, 2 Cavities/Pins
1шт.
8
NSS
NOT SOLD SEPARAT
Coolant Line, Valve to T-Fitting, Incl in 1
1шт.
9
214-1704
HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm
1шт.
10
NSS
NOT SOLD SEPARAT
Urea Pressure Tube, Incl in 1
1шт.
Выбрано товаров: 10
