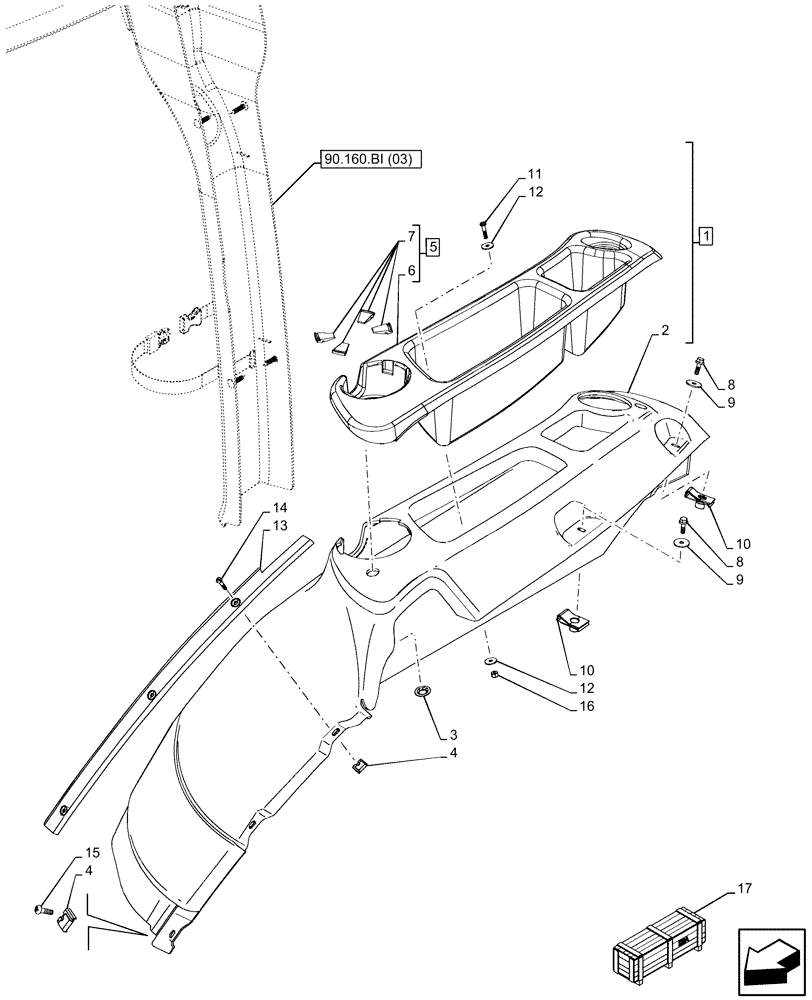

Запчасти Case 590SN (90.160.AM[04]) - VAR - 442083 - CAB INTERIOR TRIM, LEFT SIDE, INTERNAL PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86992248

COVER

ASSY, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

3

333773A1

PUSH-ON NUT

2шт.

4

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

3шт.

5

86992244

TRAY

ASSY, Incl 6 - 7

1шт.

6

NSS

NOT SOLD SEPARAT

Storage, Incl in 5

1шт.

7

86992284

BUMPER,40-50 Durometer

4шт.

8

87310098

BOLT,M6 x 20 Full SST BLO

2шт.

9

87310186

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

10

833-40406

NUT,M6, U

2шт.

11

87310127

SCREW,Pan HD, #10 - 24 x 1", SST

2шт.

12

87310146

WASHER,5.16mm ID x 19.05mm OD x 1.55mm Thk

4шт.

13

397774A3

STRIP

1шт.

14

87534992

SELF-TAP SCREW,Pan Head, M10 x 28mm

2шт.

15

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

1шт.

16

231-14109

LOCK NUT,#10-24, GB

2шт.

17

47605401

CONSTRUCTION DIA

Cab, Delux Conversion, Wide,Incl 1 - 7, 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
